74242 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240003001 - 240999999) (2004) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

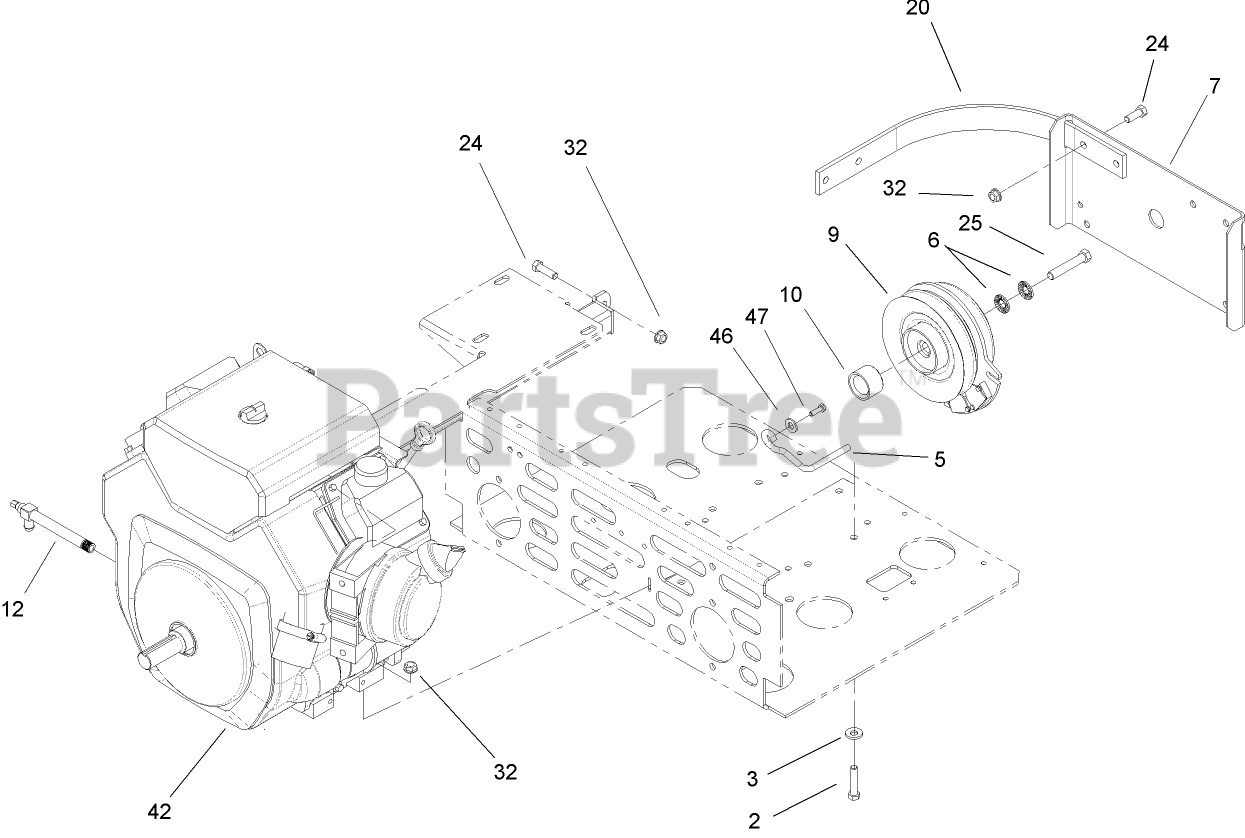

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

7

Toro 1-633615-03

GUARD-CLUTCH

$84.99

$

Usually ships in 3-6 days

0

9

Toro 103-6590

CLUTCH

$631.99

$

In Stock, only 1 left!

0

10

Toro 1-633453

SPACER-CLUTCH

$19.99

$

In Stock, only 2 left!

0

12

Toro 103-1996

VALVE-OIL DRAIN, LONG

$

$

Not available

20

Toro 1-643264-03

BRACKET-GUARD, TOP

$

$

Not available

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

42

ENGINE-KOHLER, CH20 PS-64706 ASM

Note: Not serviced separately

$

$

Not available

46

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0
