74242 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240003001 - 240999999) (2004) BLOWER HOUSING ASSEMBLY KOHLER CH20 PS-64706 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

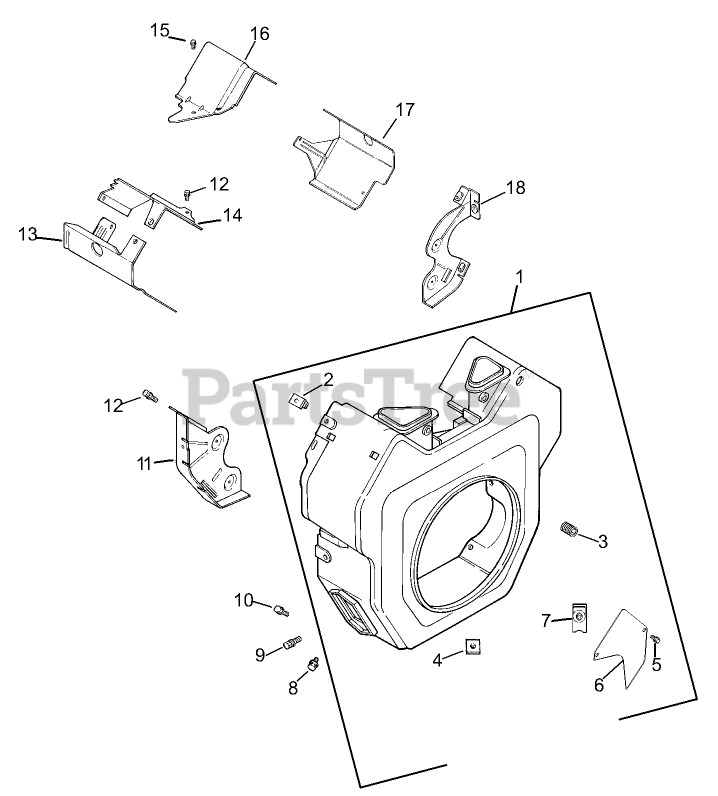

BLOWER HOUSING ASSEMBLY KOHLER CH20 PS-64706 Parts Diagram

  • Title

1

Kohler 54 027 93-S

Housing, blower assembly (Includes2-7)
(Superseded to 84 027 03-S)

Note: Obtain parts from www.kohlerplus.com

$178.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

3

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

5

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

6

Kohler 24 096 64-S

Cover-Access
(Superseded to 25 755 21-S)

Note: Obtain parts from www.kohlerplus.com

$27.99

$

In Stock, Qty 5

0

7

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

8

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

9

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

10

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

11

Kohler 24 146 16-S

Plate-Backing (No. 2 Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

13

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

15

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 3 left!

0

16

Kohler 24 063 59-S

BAFFLE-VALLEY (No. 1 SIDE)
(Superseded to 32 063 03-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

17

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

18

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 113 114-S

Decal, 20 HP
(Superseded to 24 113 95-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

Kohler 24 113 114-S

Decal, 20 HP
(Superseded to 24 113 95-S)

Note: Not illustrated

$17.99

$

In Stock, only 1 left!

0
