74242 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240003000) (2004) DECK ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

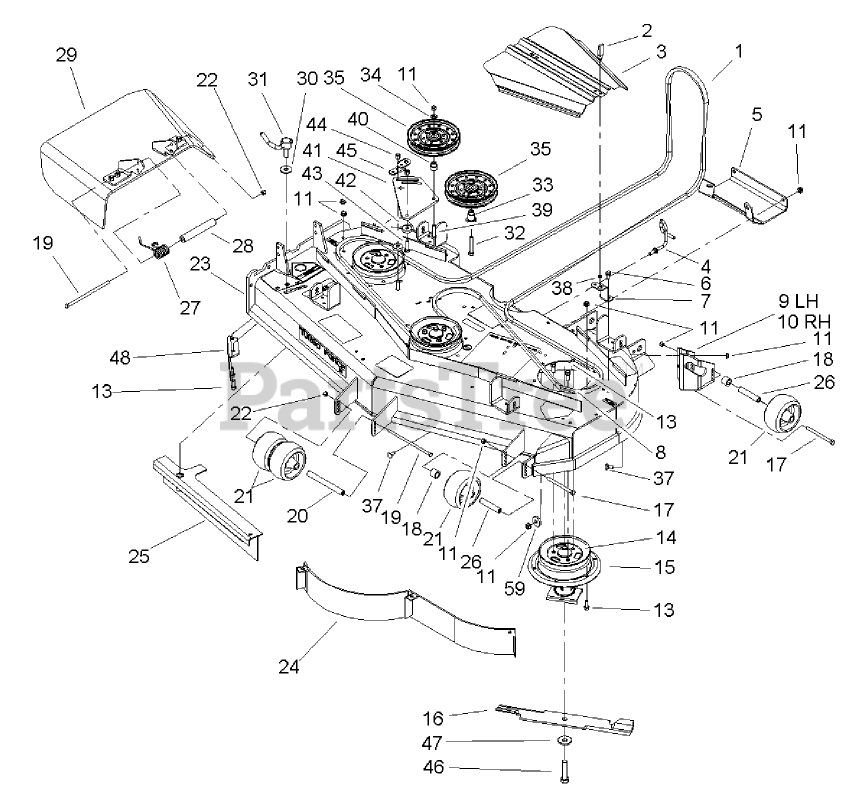

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 105-7790

Belt

$193.99

$

In Stock, only 3 left!

0

2

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0

3

Toro 105-8786-01

Cover-Belt

$152.99

$

In Stock, only 3 left!

0

4

Toro 106-3220

GUIDE-BELT

$

$

Not available

5

Toro 106-7358-01

Plate-Skid

$99.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

7

Toro 105-8787-01

Bracket-Cover

$33.99

$

Usually ships in 3-6 days

0

8

Toro 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

9

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

10

Toro 106-7355-01

MOUNT-WHEEL, RH

$107.99

$

Usually ships in 3-6 days

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

Toro 105-7735

Pulley

$43.99

$

In Stock, Qty 5

0

15

Toro 106-3217

Spindle ASM
(Superseded to 119-8599)

$615.99

$

In Stock, only 4 left!

0

16

Toro 105-7781

BLADE-Hi FLOW, 18 Inch
(Superseded to 105-7781-03)

$28.99

$

In Stock, Qty 13

0

17

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

18

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

19

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

20

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

21

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 107-1623

DECK ASM

$

$

Not available

24

Toro 105-7754-01

BAFFLE

$508.99

$

Usually ships in 3-6 days

0

25

Toro 105-7755-01

BAFFLE

$220.99

$

Usually ships in 3-6 days

0

26

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

27

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

29

Toro 106-3249

Rubber Deflector ASM
(Superseded to 108-2792)

$227.99

$

Usually ships in 3-6 days

0

30

Toro 105-7697

WASHER-PLASTIC

$3.49

$

Usually ships in 3-6 days

0

31

Toro 106-3242

Lever ASM
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

32

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

33

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

35

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

37

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

38

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

39

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

41

Toro 105-7787-01

Plate-Idler

$47.99

$

In Stock, only 1 left!

0

42

Toro 105-7788

Spacer

$9.49

$

In Stock, only 2 left!

0

43

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

44

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

45

Toro 105-7789-01

Bracket-Cover, Belt
(Superseded to 108-2178-01)

$33.99

$

Usually ships in 3-6 days

0

46

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 18

0

47

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

48

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

59

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0
