74241 (Z 286 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) SPINDLE AND PULLEY ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

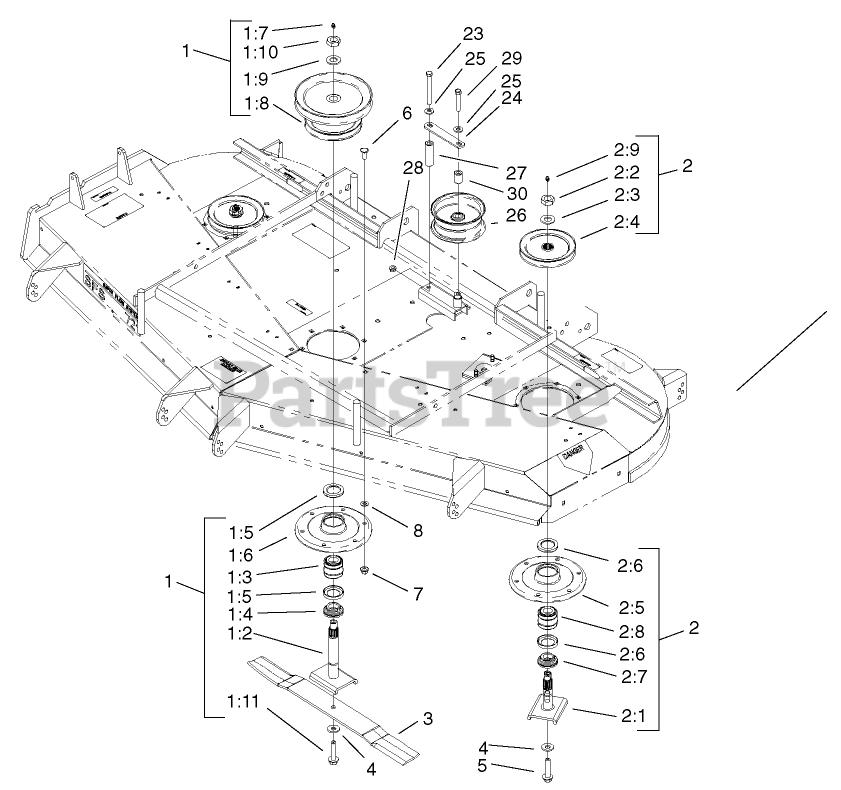

SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 100-4321

Middle Spindle ASM
(Superseded to 105-1691)

$879.99

$

Usually ships in 3-6 days

0

1:2

Toro 51-3551

Shaft-Spindle
(Superseded to 105-1686)

$206.99

$

In Stock, only 1 left!

0

1:3

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

1:4

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

1:5

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

1:6

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

1:7

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

1:8

Toro 100-4309

HUB PULLEY ASM

$266.99

$

Usually ships in 3-6 days

0

1:9

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

1:10

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

1:11

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

2

Toro 99-4642

OUTER SPINDLE ASM

$721.99

$

Usually ships in 3-6 days

0

2:1

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

2:2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

2:3

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

2:4

Toro 99-4615

PULLEY & HUB

$121.99

$

Usually ships in 3-6 days

0

2:5

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

2:6

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

2:7

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

2:8

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

2:9

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

3

Toro 94-1861

Blade
(Superseded to 94-1861-03)

$44.99

$

In Stock, Qty 19

0

4

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

5

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

6

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

7

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

23

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

24

$11.99

$

In Stock, only 2 left!

0

25

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

27

Toro 99-4659

SPACER-BRACKET

$31.99

$

Usually ships in 3-6 days

0

28

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Toro 1-653190

SPACER

$17.99

$

In Stock, only 2 left!

0
