74241 (Z 286 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) OIL PAN/LUBRICATION (ENGINE: KOHLER CH26S EFI PS-78517) Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

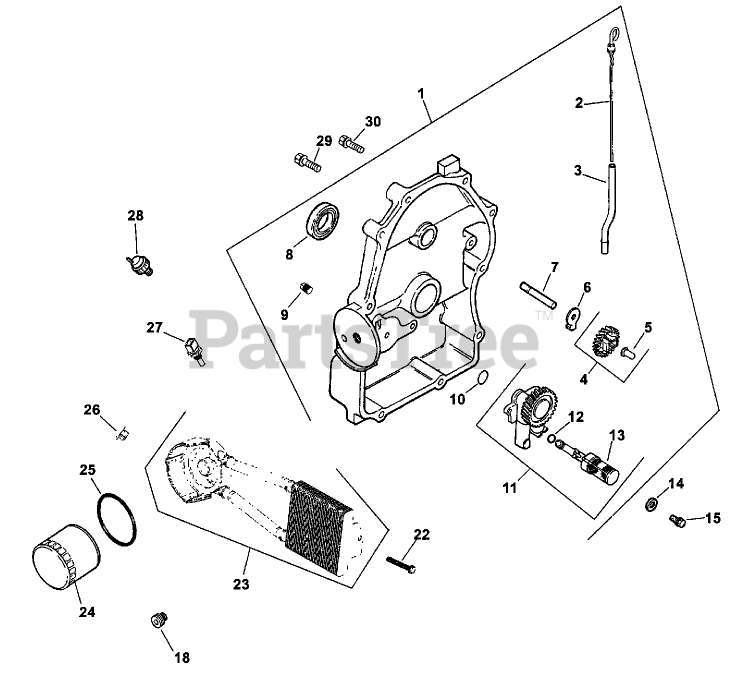

OIL PAN/LUBRICATION (ENGINE: KOHLER CH26S EFI PS-78517) Parts Diagram

  • Title

1

Kohler 24 009 83-S

Closure Plate ASM(Incl. Ref.# 2-12)
(Superseded to 24 009 238-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 24 038 06-S

Dipstick
(Superseded to 24 755 121-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, Qty 6

0

3

Kohler 24 123 08-S

Tube-Dipstick
(Superseded to 24 755 121-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, Qty 6

0

4

Kohler 24 043 12-S

Kit-Gear, Governor(Incl. Ref.# 5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

In Stock, Qty 9

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 8

0

6

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 15

0

9

Kohler X-75-23-S

Plug
(Superseded to 25 139 60-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 2 left!

0

11

Kohler 24 393 10-S

Oil Pump ASM(Incl. Ref.# 12,13)
(Superseded to 24 393 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 153 01-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 381 04-S

TUBE-PICK UP, OIL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

In Stock, only 1 left!

0

14

Toro M-0631005-S

Washer-Flat

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

15

Toro M-0645025-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

18

Kohler 24 136 01-S

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

22

Kohler 25 086 49-S

SCREW-TAPPING
(Superseded to 24 086 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

Kohler 24 594 13-S

Cooler, Oil-Phenolic
(Superseded to 24 594 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

24

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, Qty 20+

0

25

Kohler 24 153 13-S

O-Ring
(Superseded to 24 153 25-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 2 left!

0

26

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

27

Kohler 24 418 07-S

Sensor-Temperature
(Superseded to 24 755 134-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$74.99

$

Usually ships in 2-5 days

0

28

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

In Stock, only 1 left!

0

29

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

30

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

Kohler 24 113 25-S

DECAL-COOLER, OIL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 24 113 25-S

DECAL-COOLER, OIL

Note: Not illustrated

$

$

Not available
