74241 (Z 286 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) BLOWER HOUSING AND BAFFLES ASSEMBLY (ENGINE: KOHLER CH26S EFI PS-78517) Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

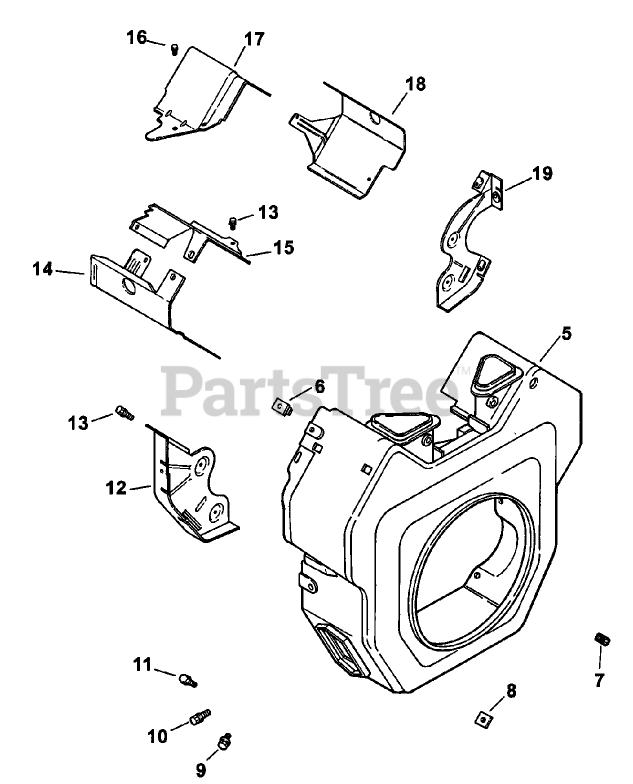

BLOWER HOUSING AND BAFFLES ASSEMBLY (ENGINE: KOHLER CH26S EFI PS-78517) Parts Diagram

  • Title

5

Kohler 24 027 40-S

Housing-Blower(Incl. Ref.# 2-4)
(Superseded to 24 027 479-S)

Note: Obtain from Kohler

$166.99

$

Usually ships in 2-5 days

0

6

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain from Kohler

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Obtain from Kohler

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain from Kohler

$2.49

$

In Stock, Qty 7

0

9

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain from Kohler

$2.49

$

In Stock, only 2 left!

0

10

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain from Kohler

$3.99

$

Usually ships in 2-5 days

0

11

Kohler M-567020-S

Screw-HF
(Superseded to M-545020-S)

Note: Obtain from Kohler

$2.49

$

In Stock, Qty 20+

0

12

Kohler 24 146 19-S

Plate-Backing (No. 2 Side)
(Superseded to 24 146 59-S)

Note: Obtain from Kohler

$15.99

$

In Stock, only 1 left!

0

13

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain from Kohler

$3.99

$

In Stock, Qty 13

0

14

Kohler 24 063 39-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Obtain from Kohler

$28.99

$

Usually ships in 2-5 days

0

15

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Obtain from Kohler

$9.49

$

Usually ships in 2-5 days

0

16

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain from Kohler

$4.49

$

In Stock, only 3 left!

0

17

Kohler 24 063 24-S

Baffle-Valley, No. 1 side
(Superseded to 24 063 59-S)

Note: Obtain from Kohler

$6.49

$

In Stock, only 1 left!

0

18

Kohler 24 063 30-S

Baffle, cyl. barrel-#1
(Superseded to 24 063 85-S)

Note: Obtain from Kohler

$17.99

$

In Stock, only 1 left!

0

19

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Obtain from Kohler

$

$

Not available

Kohler 24 113 64-S

Decal-HP

Note: Not illustrated

$6.49

$

Usually ships in 2-5 days

0

Kohler 24 113 64-S

Decal-HP

Note: Obtain from Kohler

$6.49

$

Usually ships in 2-5 days

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain from Kohler

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 15

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain from Kohler

$2.49

$

In Stock, Qty 15

0

Kohler M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Obtain from Kohler

$2.49

$

Usually ships in 2-5 days

0

Kohler M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0
