74240 (Z 286 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) GROUP 6-BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH26S-78518 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

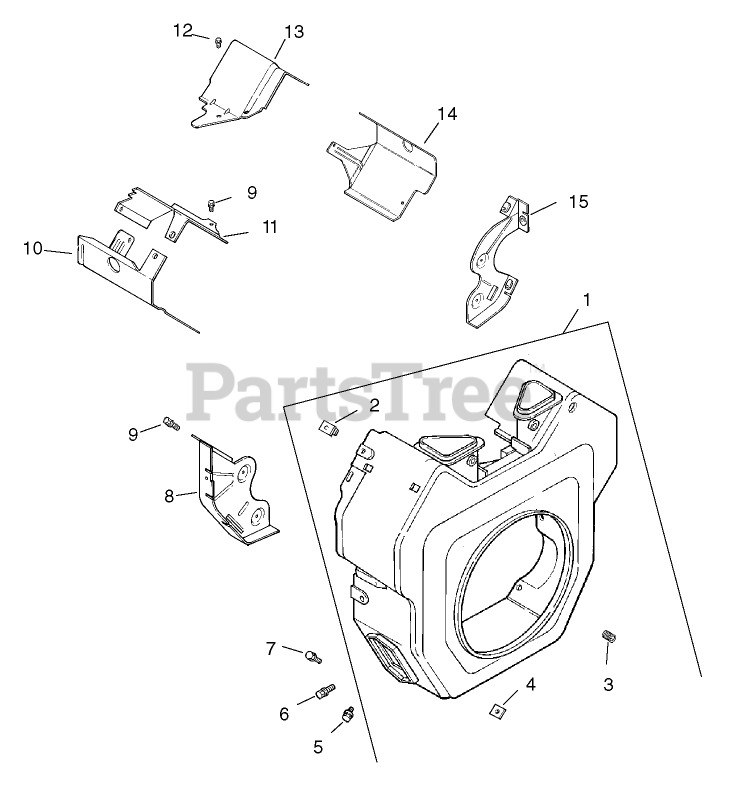

GROUP 6-BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH26S-78518 Parts Diagram

  • Title

1

Kohler 24 027 123-S

Housing, blower (Includes 2-4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$256.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 02-S

NUT-PLASTIC

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

5

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

6

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

7

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

8

Kohler 24 146 19-S

Plate-Backing (No. 2 Side)
(Superseded to 24 146 59-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 1 left!

0

9

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

10

Kohler 24 063 39-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

11

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

13

Kohler 24 063 24-S

Baffle-Valley, No. 1 side
(Superseded to 24 063 59-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

14

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

15

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 24 113 100-S

Decal, HP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

Usually ships in 2-5 days

0

Kohler 24 113 100-S

Decal, HP

Note: Not illustrated

$7.99

$

Usually ships in 2-5 days

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 15

0

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

Kohler M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler M-561010-S

Screw-HWHTF (M5x0.8x10)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0
