74240 (Z 286 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) REAR FRAME AND WHEEL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

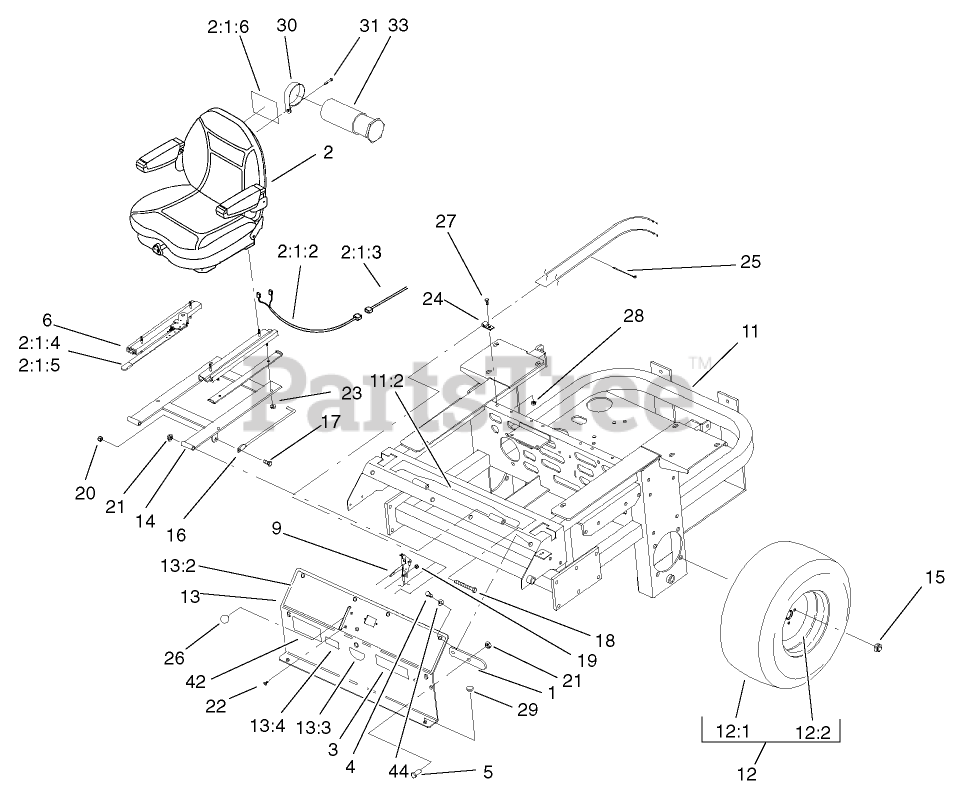

REAR FRAME AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

2

Toro 74210

Seat-Suspension,High

$

$

Currently unavailable

2:1:2

Toro 1-633840

HARNESS-WIRING, SEAT
(Superseded to 103-1227)

$23.99

$

Usually ships in 3-6 days

0

2:1:3

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

2:1:4

Toro 1-633872-03

STOP-SEAT

$47.99

$

Usually ships in 3-6 days

0

2:1:5

Toro 1-653282-03

STOP/SPACER-SEAT

$49.99

$

Usually ships in 3-6 days

0

2:1:6

Toro 99-4693

DECAL

$25.99

$

In Stock, only 1 left!

0

2:1

Kit-Suspension, Seat

Note: Not serviced

$

$

Not available

2:99

Toro 1-631842

KIT-PAD, ARMREST

Note: Not illustrated

$220.99

$

Usually ships in 3-6 days

0

2:99

Toro 1-631843

KIT-BOOT

Note: Not illustrated

$

$

Not available

2:99

Toro 1-631844

ARM KIT ASM

Note: Not illustrated

$525.99

$

Usually ships in 3-6 days

0

2:99

Toro 1-631845

PAN ASM

Note: Not illustrated

$

$

Not available

2:99

Toro 1-631846

KIT-DAMPER

Note: Not illustrated

$

$

Not available

2:99

Toro 1-631847

KIT-ROLLER

Note: Not illustrated

$

$

Not available

2:99

Toro 1-631848

KIT-SPRING & CABLE

Note: Not illustrated

$161.99

$

In Stock, only 1 left!

0

2:99

Toro 1-631849

KIT-KNOB & SHAFT

Note: Not illustrated

$

$

Not available

2:99

Toro 1-643281

SWITCH-SEAT

Note: Not illustrated

$56.99

$

Usually ships in 3-6 days

0

3

Toro 100-4329

DECAL-EFI

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

6

Toro 1-643255

TRACK-SEAT

$205.99

$

In Stock, only 2 left!

0

9

Toro 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 2 left!

0

11

Toro 100-4261

Frame ASM-Rear
(Superseded to 103-2175)

$2054.99

$

Usually ships in 3-6 days

0

11:2

Toro 103-0245

DECAL-CONSOLE, TOP

$

$

Not available

12

Toro 1-633970

WHEEL AND TIRE ASM
(Superseded to 109-8972)

$448.99

$

Usually ships in 3-6 days

0

12:1

Toro 1-633993

TIRE

$330.99

$

Usually ships in 3-6 days

0

12:2

Toro 1-633992

WHEEL RIM
(Superseded to 109-3156)

$243.99

$

In Stock, Qty 10

0

13

Toro 100-4322

CONSOLE ASM

$

$

Not available

13:2

Toro 100-4311

DECAL-PANEL, CONTROL

$

$

Not available

13:3

Toro 103-0261

DECAL-VALVE, FUEL

$7.49

$

In Stock, only 4 left!

0

13:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

14

Toro 1-632187-03

FRAME-SEAT
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

15

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

16

Toro 1-633293

ROD-HOLDUP, SEAT

$15.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-21

SCREW-HH
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Toro 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

29

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

30

Toro 2412-133

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

31

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

42

Toro 104-7786

DECAL-Z286E

$

$

Not available

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
