74238 (Z 528) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) DECK CONNECTION ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

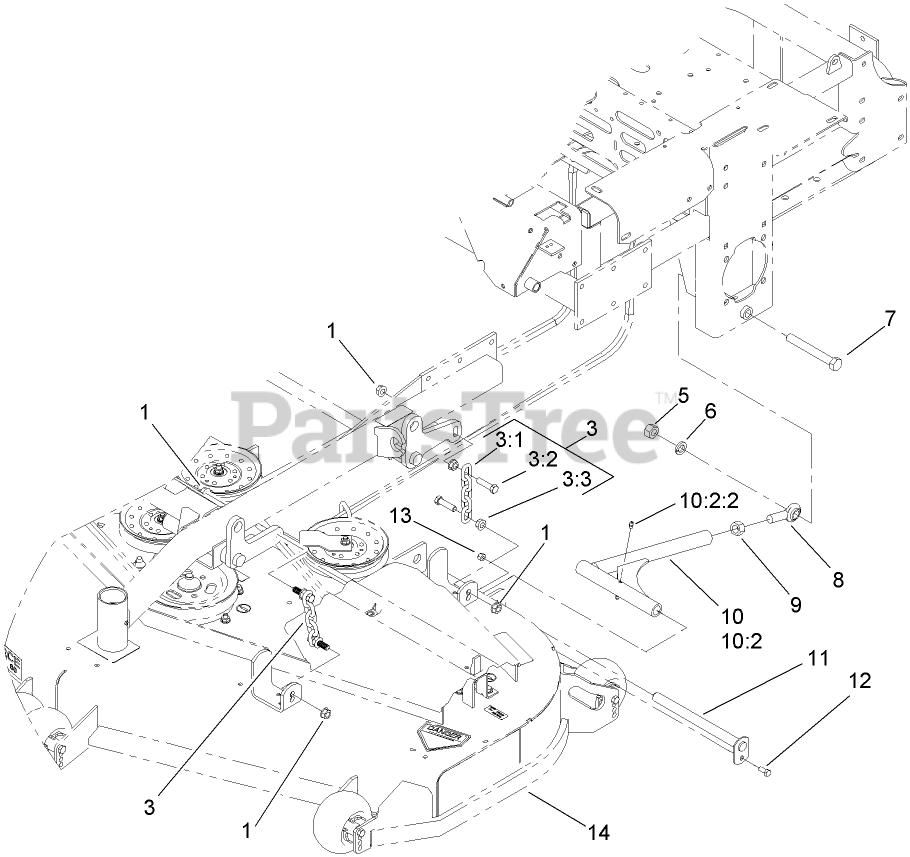

DECK CONNECTION ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 13

0

3

Toro 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

3:1

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 12

0

3:2

Toro 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

3:3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 13

0

5

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

6

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 327-11

SCREW-HH

$11.99

$

In Stock, Qty 11

0

8

Toro 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

9

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

10

Toro 109-1181

STRUT-DECK

$114.99

$

In Stock, Qty 10

0

10:2

TUBE AND ZERK ASM

Note: Not serviced separately

$

$

Not available

10:2:2

Toro 109-1380

FITTING-GREASE
(Superseded to 302-19)

$2.49

$

In Stock, Qty 20+

0

11

Toro 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Deck ASM

Note: Not serviced separately

$

$

Not available
