74238 CP (Z 528) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) MAIN FRAME ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

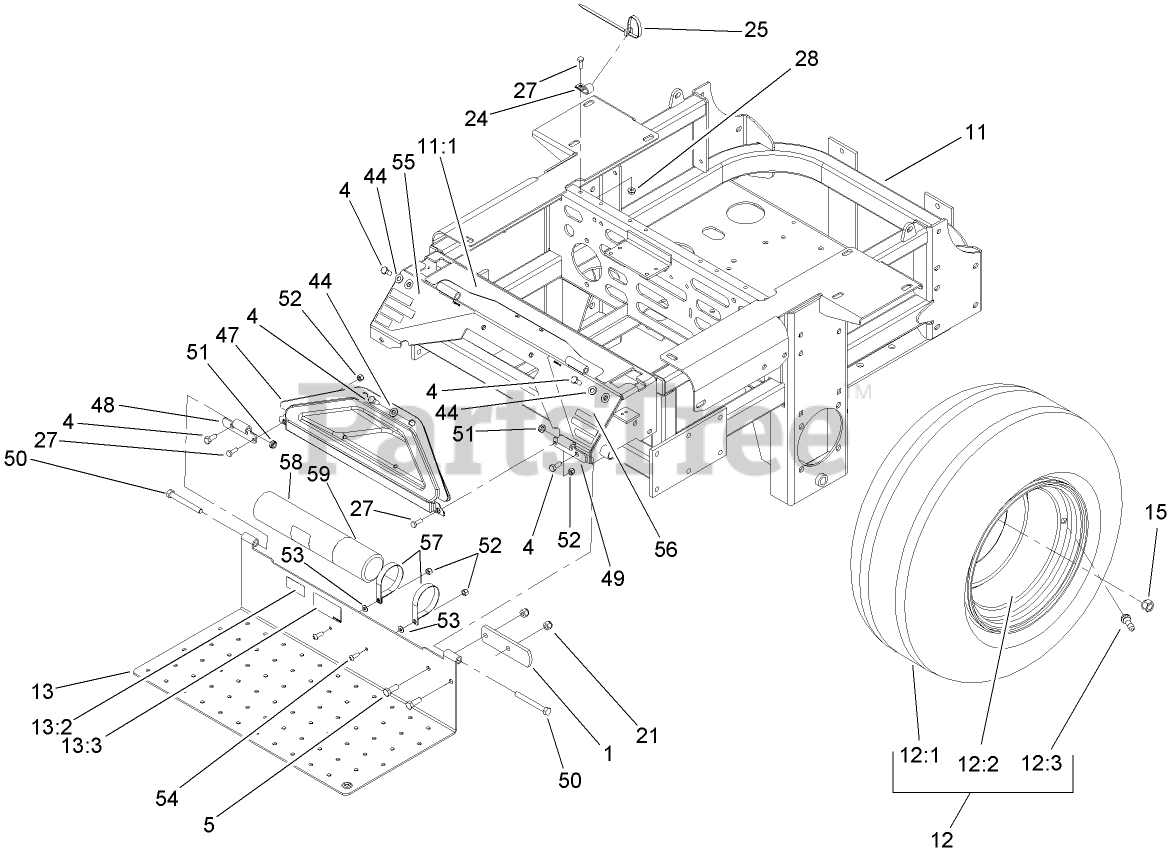

MAIN FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

4

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

5

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 112-9000

MAIN FRAME ASM

$

$

Not available

11:1

Toro 107-8076

DECAL-CONSOLE, TOP

$

$

Not available

12

Toro 1-653010

WHEEL AND TIRE ASM

$484.99

$

Usually ships in 3-6 days

0

12:1

Toro 1-653160

TIRE
(Superseded to 116-5363)

$210.99

$

Usually ships in 3-6 days

0

12:2

$182.99

$

Usually ships in 3-6 days

0

12:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

13

Toro 107-1858

FLOORPAN

$

$

Not available

13:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

13:3

Toro 107-1864

Decal-Location, Manual

$8.49

$

Usually ships in 3-6 days

0

15

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

44

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

47

Toro 106-7498

Pocket

$34.99

$

Usually ships in 3-6 days

0

48

Toro 106-7488-03

Hinge-Floorpan, LH

$22.99

$

Usually ships in 3-6 days

0

49

Toro 106-7489-03

Hinge-Floorpan, RH

$22.99

$

Usually ships in 3-6 days

0

50

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

51

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

52

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

53

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

54

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

55

Toro 106-9989

Decal-Warning

$20.99

$

Usually ships in 3-6 days

0

56

Toro 106-7492

Decal-Danger

$20.99

$

Usually ships in 3-6 days

0

57

Toro 107-1865

R-Clamp

$11.99

$

Usually ships in 3-6 days

0

58

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

59

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0
