74237 (Z 528) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) SEAT ASSEMBLY NO. 110-5737 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

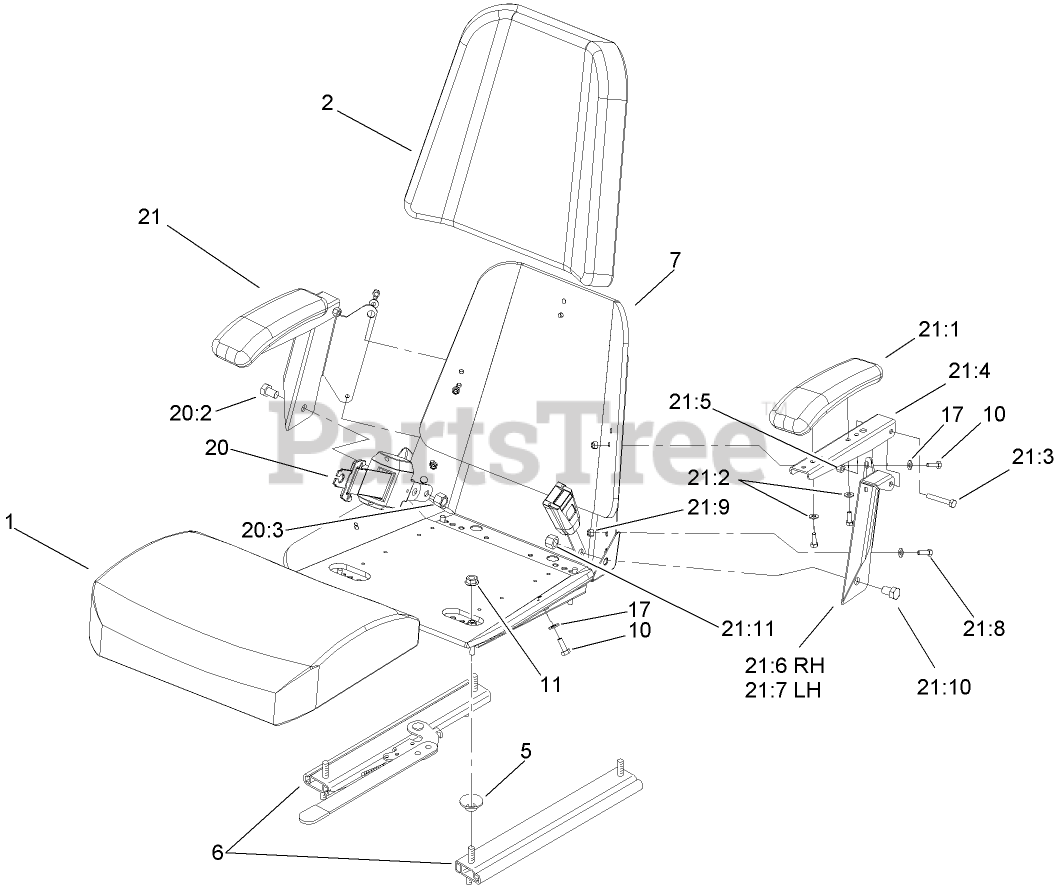

SEAT ASSEMBLY NO. 110-5737 Parts Diagram

  • Title

1

Toro 110-5741

CUSHION-SEAT, BOTTOM

$

$

Not available

2

Toro 110-5742

CUSHION-SEAT, BACK

$

$

Not available

5

Toro 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

6

Toro 1-643255

TRACK-SEAT

$230.99

$

In Stock, only 2 left!

0

7

Toro 1-633859

FRAME-SEAT

$203.99

$

In Stock, only 2 left!

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 110-0883

RETRACTABLE SEATBELT KIT

$290.99

$

Usually ships in 3-6 days

0

20:2

Toro 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20:3

Toro 3296-7

NUT-LOCK

$4.49

$

Usually ships in 3-6 days

0

21

Toro 110-5719

ARMREST KIT

$193.99

$

Usually ships in 3-6 days

0

21:1

Toro 110-4163

CUSHION-REST, ARM

$100.99

$

Usually ships in 3-6 days

0

21:2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21:3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21:4

Toro 105-3623

CHANNEL-ARMREST

$75.99

$

Usually ships in 3-6 days

0

21:5

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.99

$

Usually ships in 3-6 days

0

21:6

Toro 105-3621

Bracket-Armrest, RH

$118.99

$

Usually ships in 3-6 days

0

21:7

Toro 105-3622

Bracket-Armrest, LH

$118.99

$

Usually ships in 3-6 days

0

21:8

Toro 321-30

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

21:9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21:10

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

21:11

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
