74237 CP (Z 528) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) GUARD ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

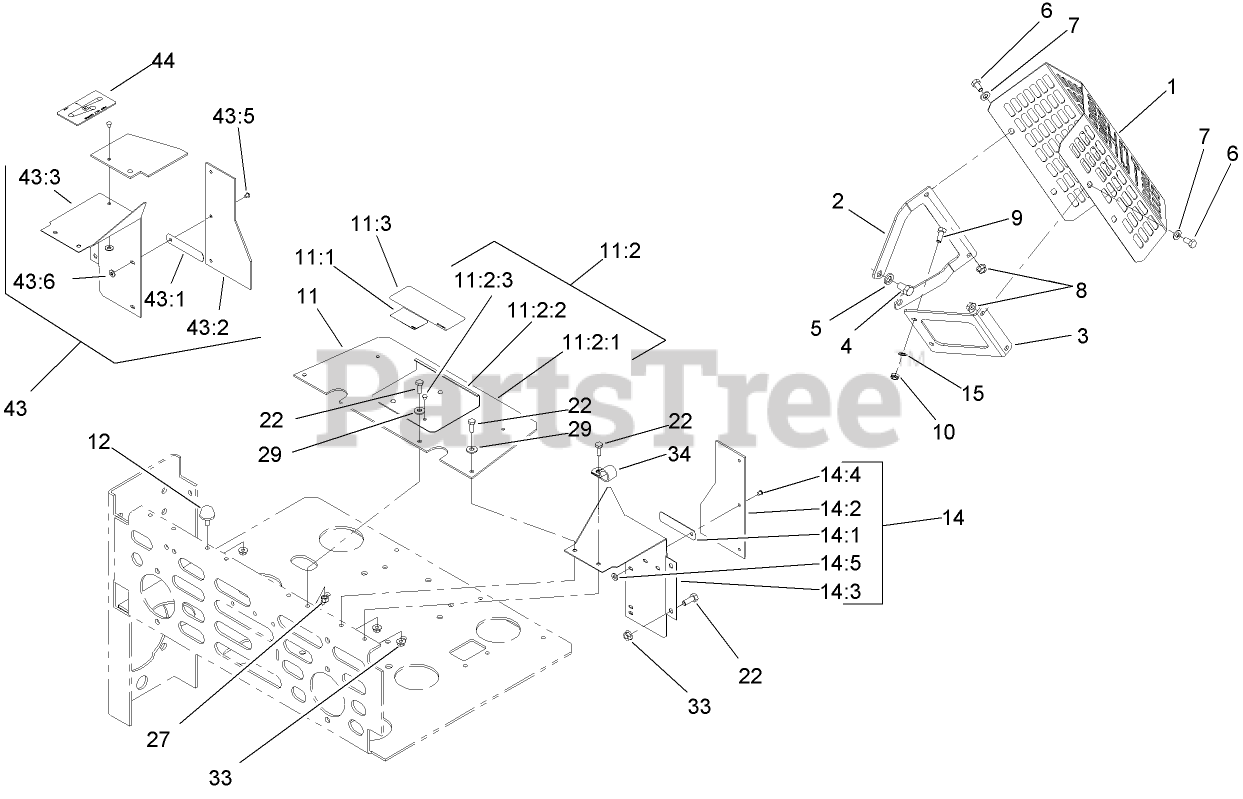

GUARD ASSEMBLY Parts Diagram

  • Title
1

Toro 112-8346-03

GUARD-MUFFLER

$130.99

$

Usually ships in 3-6 days

0

2

Toro 112-8347-03

BRACKET-MOUNT, MUFFLER

$52.99

$

Usually ships in 3-6 days

0

3

Toro 112-8348-03

BRACKET-SUPPORT, MUFFLER

$42.99

$

Usually ships in 3-6 days

0

4

Toro 324-2

SCREW-HH

$4.99

$

In Stock, only 3 left!

0

5

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

10

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 11

0

11

Toro 105-6196

SHIELD ASM

$147.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-633462

DECAL-IMPORTANT

$5.49

$

In Stock, only 4 left!

0

11:2

Toro 103-1301

Drive Cover ASM

$

$

Not available

11:2:1

Toro 103-1308

SHIELD-ENGINE

$33.99

$

In Stock, only 1 left!

0

11:2:2

Toro 103-1304-03

PLATE-COVER, DRIVE

$

$

Not available

11:2:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

11:3

Toro 103-5881

DECAL-DEVICES, ROTATING

$6.49

$

In Stock, Qty 10

0

12

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

0

14

Toro 103-0241

LH Extended Shield ASM

$

$

Not available

14:1

Toro 1-523285

CLIP-BAFFLE, REAR

$13.99

$

Usually ships in 3-6 days

0

14:2

Toro 103-0243

SHIELD

$

$

Not available

14:3

Toro 1-633795-03

BAFFLE-ENGINE SHIELD, LH

$

$

Not available

14:4

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

14:5

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

15

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

43

Toro 103-0242

RH Extended Shield ASM

$

$

Not available

43:1

Toro 1-523285

CLIP-BAFFLE, REAR

$13.99

$

Usually ships in 3-6 days

0

43:2

Toro 103-0243

SHIELD

$

$

Not available

43:3

Toro 1-633794-03

SHIELD-RH

$

$

Not available

43:5

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

43:6

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

44

Toro 1-643339

DECAL-ROUTING, BELT

$

$

Not available
