74237 CP (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) HYDRAULIC ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

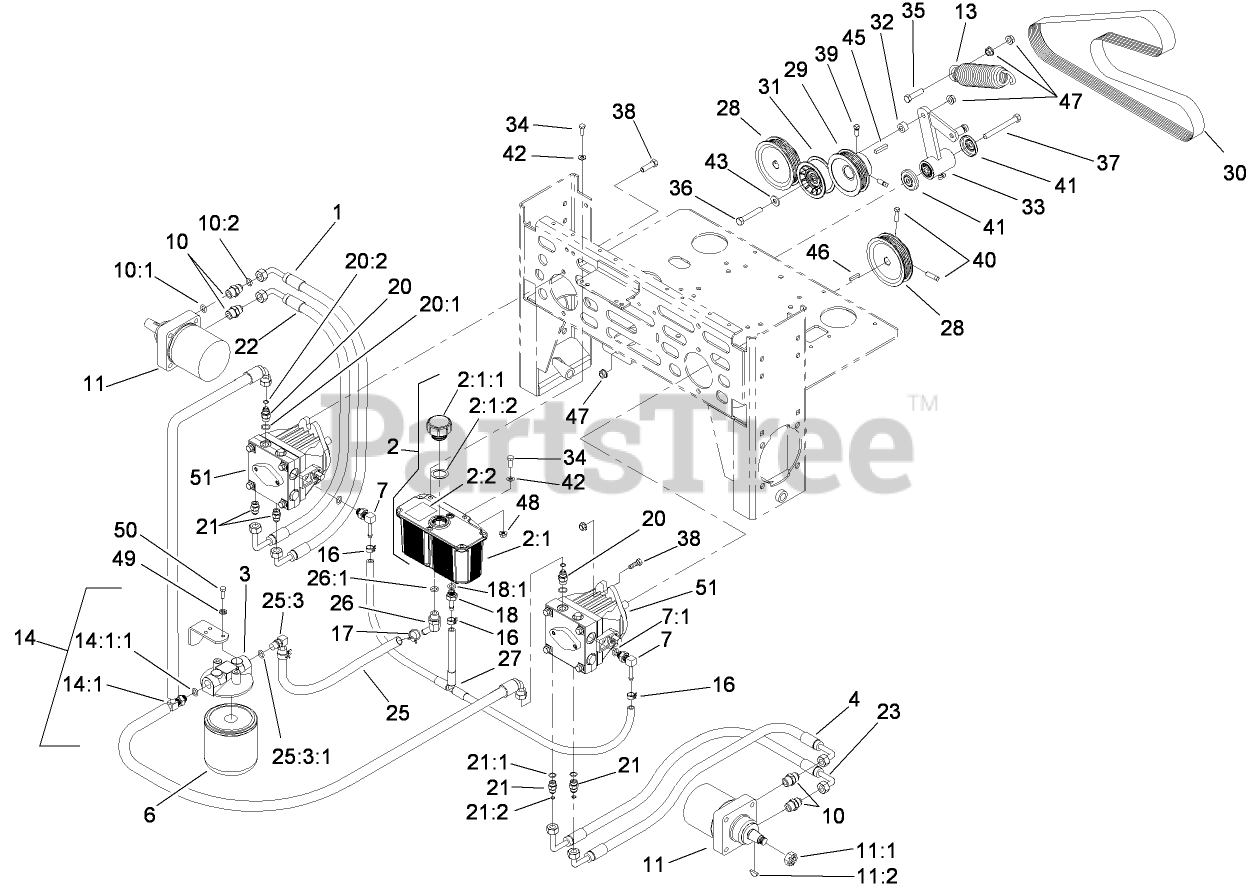

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 103-3736

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

2

Toro 103-1947

HYD Reservoir ASM

$263.99

$

Usually ships in 3-6 days

0

2:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

2:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 20+

0

2:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

2:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

3

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

4

Toro 103-3733

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

6

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

0

6

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 15

0

7

Toro 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 1 left!

0

7:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro 1-603991

Fitting-Straight

$21.99

$

In Stock, only 2 left!

0

10:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

10:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

11

Toro 1-523328

MOTOR-WHEEL

$1375.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

11:2

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

11:99

Toro 1-000099

SEAL KIT
(Superseded to 103-6994)

Note: Not illustrated

$330.99

$

Usually ships in 3-6 days

0

11:99

Toro 1-000139

BEARING KIT

Note: Not illustrated

$

$

Not available

11:99

Toro 103-2748

Drive Link Kit

Note: Not illustrated

$337.99

$

Usually ships in 3-6 days

0

13

Toro 103-3330

Spring-Extension
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

14

Toro 109-6273

HYD HOSE ASM

$126.99

$

Usually ships in 3-6 days

0

14:1

ADAPTER-RUN, TEE

Note: Not serviced separately

$

$

Not available

14:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

16

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 11

0

17

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

18

Toro 103-1801

Adapter-Straight

$30.99

$

In Stock, only 1 left!

0

18:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

20

Toro 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 4 left!

0

20:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

20:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

21

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

21:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

21:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

22

Toro 103-3737

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

23

Toro 103-3735

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

25

Toro 109-7689

HYD HOSE ASM

$45.99

$

Usually ships in 3-6 days

0

25:3

FITTING-BARB

Note: Not serviced separately

$

$

Not available

25:3:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

26

Toro 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

27

Toro 103-1806

HYD Hose ASM

$43.99

$

In Stock, only 1 left!

0

28

Toro 109-6046

SHEAVE

$209.99

$

Usually ships in 3-6 days

0

29

Toro 109-7738

SHEAVE

$93.99

$

Usually ships in 3-6 days

0

30

Toro 114-1512

BELT

$71.99

$

In Stock, only 1 left!

0

31

Toro 109-4076

PULLEY-FLAT IDLER

$17.99

$

In Stock, only 1 left!

0

32

Toro 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

0

33

Toro 103-5679

PUMP IDLER ASM
(Superseded to 103-5694)

$141.99

$

In Stock, only 1 left!

0

34

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

37

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

38

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 8

0

40

Toro 30-1710

SCREW-SET

$10.99

$

In Stock, only 2 left!

0

41

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

42

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

46

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

47

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

48

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

49

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

50

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 110-4150

PUMP-HYD

$1559.99

$

Usually ships in 3-6 days

0
