74236 (Z 287 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

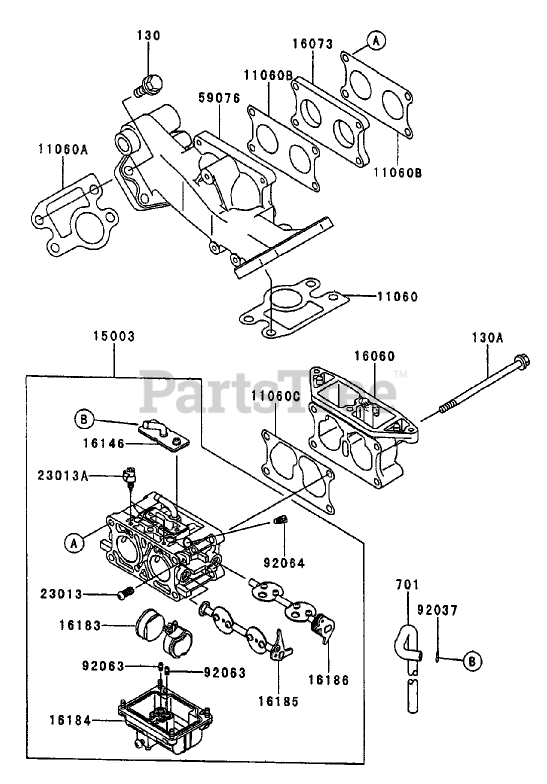

CARBURETOR ASSEMBLY KAWASAKI FD750D-AS03 Parts Diagram

  • Title
11060

Kawasaki 11060-2468

Gasket-Manifold, Intake

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-2469

Gasket-Manifold, Intake

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-2471

Gasket-Pipe, Intake

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 16

0

11060C

Kawasaki 11060-2473

Gasket-Carburetor
(Superseded to 11061-2075)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 20+

0

15003

Kawasaki 15003-2776

Carburetor ASM
(Superseded to 15003-2813)

Note: Obtain Parts From Kawasaki

$

$

Not available

16060

Kawasaki 16060-2194

Pipe-Intake

Note: Obtain Parts From Kawasaki

$43.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2206

Insulator

Note: Obtain Parts From Kawasaki

$14.99

$

In Stock, only 4 left!

0

16146

Kawasaki 16146-2227

Cover ASM

Note: Obtain Parts From Kawasaki

$108.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 16183-2006

Float ASM

Note: Obtain Parts From Kawasaki

$50.99

$

In Stock, only 4 left!

0

16184

Kawasaki 16184-2004

Float Chamber ASM
(Superseded to 16184-2007)

Note: Obtain Parts From Kawasaki

$205.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2036

Throttle Valve ASM

Note: Obtain Parts From Kawasaki

$

$

Not available

16186

Kawasaki 16186-2036

Choke Valve ASM

Note: Obtain Parts From Kawasaki

$50.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2059

Screw ASM

Note: Obtain Parts From Kawasaki

$

$

Not available

23013A

Kawasaki 23013-2060

Screw ASM

Note: Obtain Parts From Kawasaki

$32.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-2065

Manifold-Intake

Note: Obtain Parts From Kawasaki

$188.99

$

In Stock, only 1 left!

0

92037

Kawasaki 92037-1610

Clamp

Note: Obtain Parts From Kawasaki

$2.49

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2400

Jet-Main

Note: Obtain Parts From Kawasaki

$14.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2113

Jet-Pilot

Note: Obtain Parts From Kawasaki

$12.99

$

Usually ships in 2-5 days

0

130

Toro 130G0825

Bolt-Flanged (8X25)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130A

Kawasaki 130T06110

Bolt-Flanged
(Superseded to 130CA06110)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 8

0

701

Kawasaki 701Q061000

Tube-PVC

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 11

0
