74236 (Z 287 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) BELT AND IDLER ARM ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

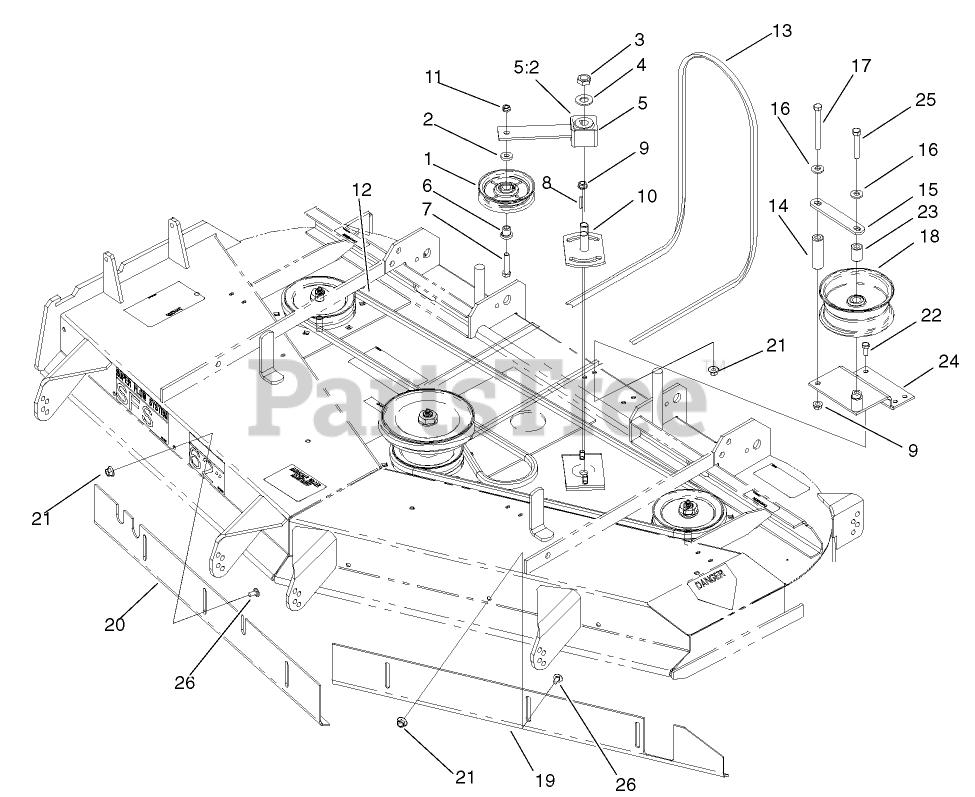

BELT AND IDLER ARM ASSEMBLY Parts Diagram

  • Title
1

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

2

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

3

Toro 3296-71

NUT-LOCK NI

$8.49

$

In Stock, only 1 left!

0

4

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

5

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

5:2

Toro 27-8490

BUSHING-RUBBER

$115.99

$

In Stock, only 1 left!

0

6

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

7

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

8

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 44-6301

PLATE-IDLER, LH

$157.99

$

In Stock, Qty 5

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

12

Toro 44-6260

V-BELT

$68.99

$

In Stock, only 3 left!

0

13

Toro 99-4647

V-BELT-DRIVE, DECK

$118.99

$

In Stock, only 1 left!

0

14

Toro 99-4659

SPACER-BRACKET

$31.99

$

Usually ships in 3-6 days

0

15

$11.99

$

In Stock, only 2 left!

0

16

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

17

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

18

Toro 1-413099

PULLEY-IDLER
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

19

Toro 99-2833-03

BAFFLE-FRONT, LH

$171.99

$

Usually ships in 3-6 days

0

20

Toro 99-2834-03

BAFFLE-FRONT, RH

$171.99

$

In Stock, only 1 left!

0

21

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

23

Toro 1-653190

SPACER

$17.99

$

In Stock, only 2 left!

0

24

Toro 99-4684-01

BRACKET-PULLEY

$175.99

$

Usually ships in 3-6 days

0

25

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0
