74235 (Z 255) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) BELT AND IDLER ARM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

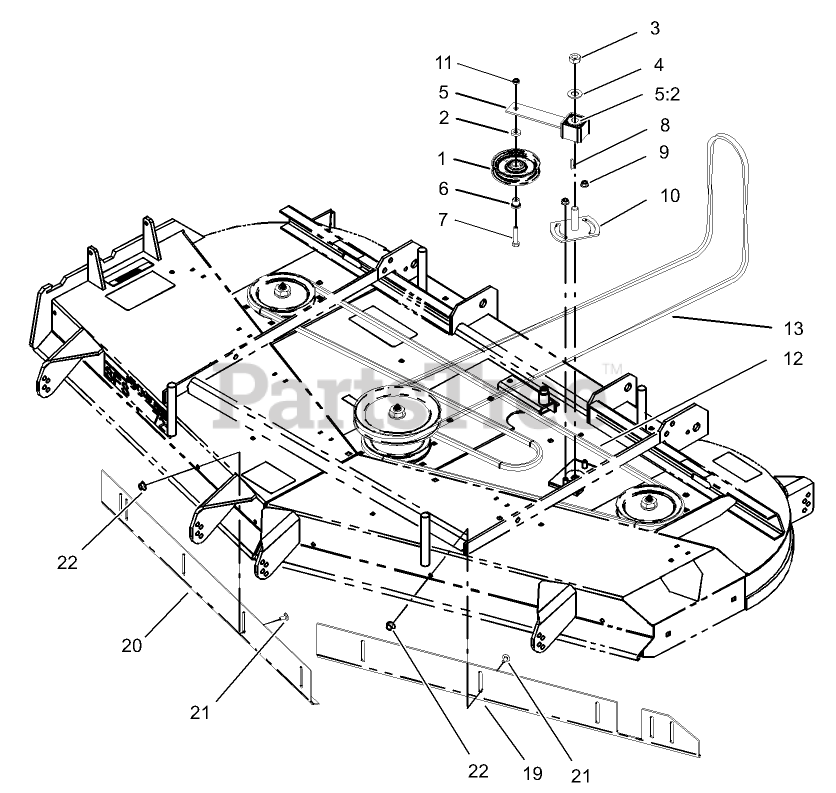

BELT AND IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

2

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

3

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

4

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

5

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

5:2

Toro 27-8490

BUSHING-RUBBER

$115.99

$

In Stock, only 1 left!

0

6

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

7

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

8

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 44-6300

PLATE-IDLER

$139.99

$

Usually ships in 3-6 days

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

12

Toro 57-0240

V-BELT (72)

$98.99

$

In Stock, only 3 left!

0

13

Toro 99-4627

V-BELT

$177.99

$

In Stock, Qty 8

0

19

Toro 99-5156-03

Baffle-Front, LH

$483.99

$

Usually ships in 3-6 days

0

20

Toro 93-3215-03

Baffle-Front, RH
(Superseded to 93-3215)

$

$

Not available

21

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
