74235 (Z 255) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

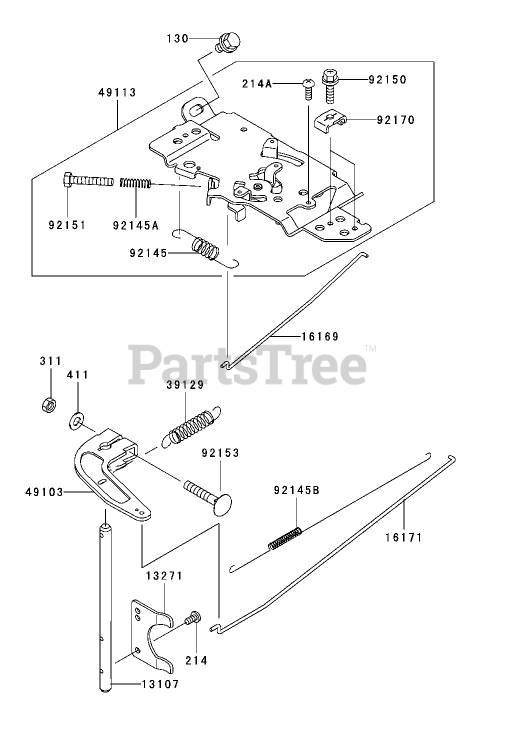

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

  • Title
13107

Kawasaki 13107-7011

Shaft
(Superseded to 13107-7055)

Note: Obtain Parts From Kawasaki

$12.99

$

In Stock, only 1 left!

0

13271

Kawasaki 13271-7018

Plate
(Superseded to 13271-7032)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 6

0

16169

Kawasaki 16169-7008

Link-Choke

Note: Obtain Parts From Kawasaki

$

$

Not available

16171

Kawasaki 16171-7005

Link

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, only 3 left!

0

39129

Kawasaki 39129-7004

Spring-Governor

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 20+

0

49103

Kawasaki 49103-7004

Arm-Governor
(Superseded to 49103-7002)

Note: Obtain Parts From Kawasaki

$7.99

$

In Stock, Qty 12

0

49113

Kawasaki 49113-7015

Panel-Comp-Control
(Superseded to 49113-7014)

Note: Obtain Parts From Kawasaki

$

$

Not available

92145

Kawasaki 92145-7004

Spring
(Superseded to 92145-7032)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7005

Spring

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 12

0

92145B

Kawasaki 92145-7014

Spring

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 2 left!

0

92150

Kawasaki 92150-2182

BOLT (5X18)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7014

Bolt (5x30)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 5

0

92153

Kawasaki 92153-7005

BOLT (6X35)
(Superseded to 92153-7033)

Note: Obtain Parts From Kawasaki

$

$

Not available

92170

Kawasaki 92170-7001

Clamp

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 11

0

214A

Kawasaki 214B0412

Screw-Pan
(Superseded to 214AA0412)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 6

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 12

0
