74234 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

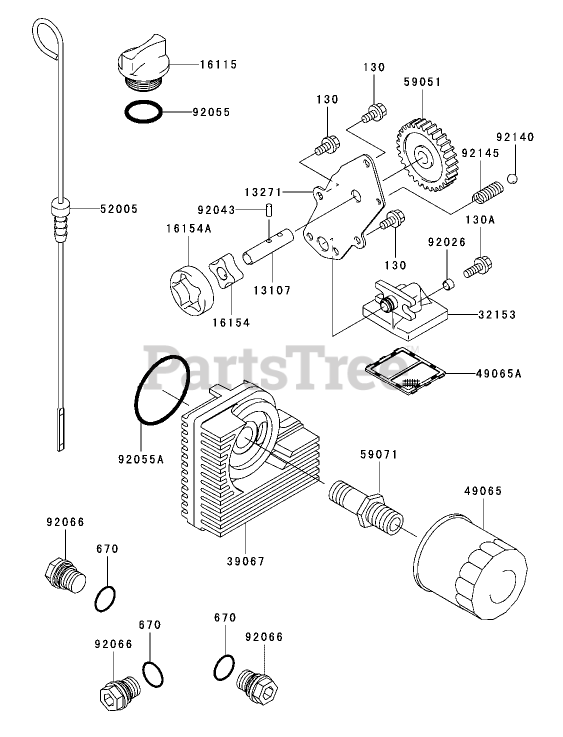

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

  • Title
13107

Kawasaki 13107-7009

Shaft
(Superseded to 13107-0749)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, only 3 left!

0

13271

Kawasaki 13271-7014

Plate

Note: Obtain Parts From Kawasaki

$4.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-7001

Cap-Filter, Oil

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, only 3 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP (IN)

Note: Obtain Parts From Kawasaki

$12.99

$

In Stock, only 2 left!

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP (OUT)

Note: Obtain Parts From Kawasaki

$9.49

$

In Stock, only 2 left!

0

32153

Kawasaki 32153-7002

Pipe

Note: Obtain Parts From Kawasaki

$4.99

$

In Stock, Qty 11

0

39067

Toro 39067-7001

Cooler-Oil

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49065

Toro 49065-2078

Filter-Oil
(Superseded to 49065-2071)

Note: Obtain Parts From Kawasaki

$

$

Not available

49065A

Kawasaki 49065-7005

Filter-Oil
(Superseded to 49065-0717)

Note: Obtain Parts From Kawasaki

$3.99

$

In Stock, Qty 11

0

52005

Kawasaki 52005-7003

Guage

Note: Obtain Parts From Kawasaki

$24.99

$

In Stock, only 2 left!

0

59051

Kawasaki 59051-7004

Gear-Spur
(Superseded to 59051-6001)

Note: Obtain Parts From Kawasaki

$

$

Not available

59071

Kawasaki 59071-7009

Joint
(Superseded to 59071-0721)

Note: Obtain Parts From Kawasaki

$10.99

$

In Stock, only 3 left!

0

92026

Kawasaki 92026-7001

SPACER (6.2X7.9X5)
(Superseded to 92153-7007)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 20+

0

92043

Kawasaki 92043-7003

Pin

Note: Obtain Parts From Kawasaki

$

$

Not available

92055

Kawasaki 92055-7004

O-Ring

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 6

0

92055A

Kawasaki 92055-7006

O-Ring (58)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7003

Plug
(Superseded to 920660774)

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7003

Ball

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-7002

Spring

Note: Obtain Parts From Kawasaki

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 20+

0
