74234 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

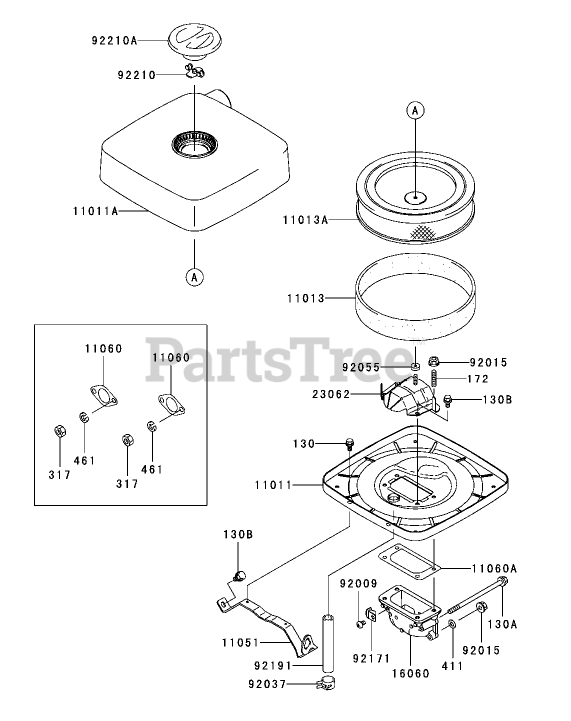

AIR FILTER/MUFFLER ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

  • Title
11011

Kawasaki 11011-7004

Case-Filter, Air

Note: Obtain Parts From Kawasaki

$23.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-7005

Case-Air Filter

Note: Obtain Parts From Kawasaki

$25.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-7007

Element-Air Filter
(Superseded to 11013-7023)

Note: Obtain Parts From Kawasaki

$14.99

$

In Stock, Qty 7

0

11013A

Toro 11013-7011

Element-Air Filter

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

11051

Kawasaki 11051-7007

Bracket

Note: Obtain Parts From Kawasaki

$7.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

Gasket-Muffler

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7022

Gasket-Case, A/C

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, only 1 left!

0

16060

Toro 16060-7002

Pipe-Intake

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

23062

Kawasaki 23062-7006

Bracket

Note: Obtain Parts From Kawasaki

$6.49

$

In Stock, only 3 left!

0

92009

Kawasaki 92009-2166

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 92037-2079

Clamp
(Superseded to 92173-7003)

Note: Obtain Parts From Kawasaki

$2.49

$

In Stock, Qty 20+

0

92055

Kawasaki 92055-7005

O-Ring

Note: Obtain Parts From Kawasaki

$1.49

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7003

Clamp

Note: Obtain Parts From Kawasaki

$0.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-7020

Tube

Note: Obtain Parts From Kawasaki

$3.49

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7004

NUT (M6)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

92210A

Kawasaki 92210-7010

Nut

Note: Obtain Parts From Kawasaki

$

$

Not available

130

Kawasaki 130B0510

Bolt-Flanged
(Superseded to 130AA0510)

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 1 left!

0

130A

Toro 130B0615

Bolt-Flanged

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130B

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

172

Toro 172G0612

Bolt-Stud

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

317

Kawasaki 317R0800

NUT-HEX, SMALL (8mm)
(Superseded to 92210-0887)

Note: Obtain Parts From Kawasaki

$2.99

$

In Stock, Qty 16

0

411

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 12

0

461

Toro 461F0800

Washer-Spring (8mm)

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable
