74234 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

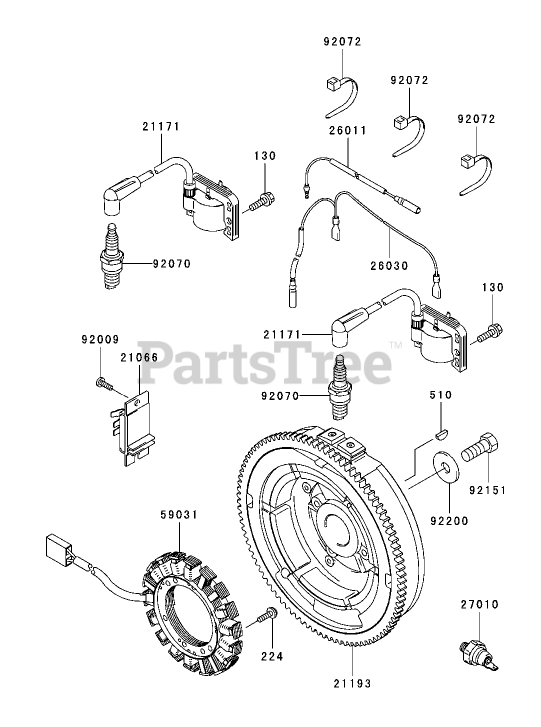

ELECTRIC EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

  • Title
21066

Toro 21066-7003

Regulator-Voltage

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

21171

Toro 21171-7001

Ignition Coil ASM

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

21193

Kawasaki 21193-7014

Flywheel ASM
(Superseded to 21193-7030)

Note: Obtain Parts From Kawasaki

$

$

Not available

26011

Kawasaki 26011-7008

Wire-Lead

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, only 4 left!

0

26030

Kawasaki 26030-7002

Harness

Note: Obtain Parts From Kawasaki

$10.99

$

In Stock, only 4 left!

0

27010

Kawasaki 27010-7001

Switch
(Superseded to 27010-0817)

Note: Obtain Parts From Kawasaki

$23.99

$

In Stock, only 1 left!

0

59031

Kawasaki 59031-7001

Coil-Charging
(Superseded to 59031-7009)

Note: Obtain Parts From Kawasaki

$128.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2308

Screw

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

SparkPlug (B P R4 E S (N G K) Solid)
(Superseded to BPR4ES)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

Band

Note: Obtain Parts From Kawasaki

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT (12X30)
(Superseded to 921547003)

Note: Obtain Parts From Kawasaki

$4.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7002

Washer

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN (5X20)
(Superseded to 224AA0520)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 11

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 11

0
