74234 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

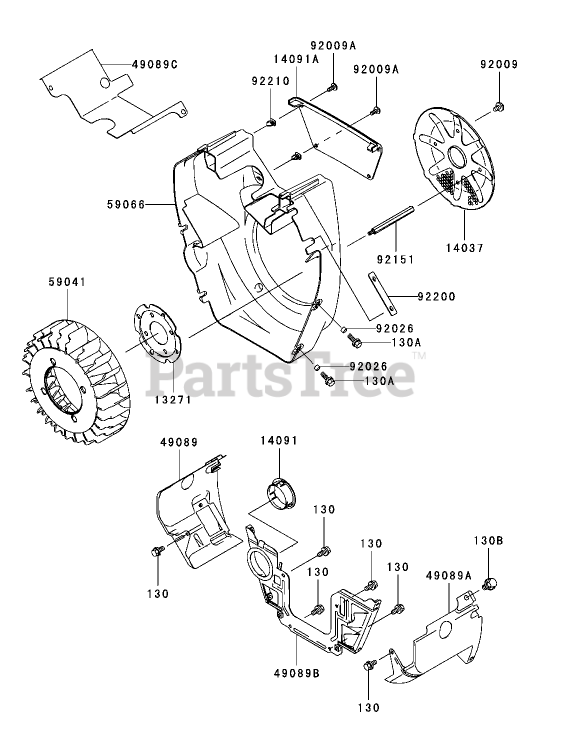

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH721D-AS05 Parts Diagram

  • Title
13271

Kawasaki 13271-7015

Plate

Note: Obtain Parts From Kawasaki

$5.49

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-7014

Screen
(Superseded to 14037-7013)

Note: Obtain Parts From Kawasaki

$39.99

$

In Stock, only 1 left!

0

14091

Kawasaki 14091-7002

Cover

Note: Obtain Parts From Kawasaki

$3.49

$

In Stock, Qty 10

0

14091A

Kawasaki 14091-7005

Cover

Note: Obtain Parts From Kawasaki

$6.99

$

In Stock, only 1 left!

0

49089

Kawasaki 49089-7004

Shroud-Engine

Note: Obtain Parts From Kawasaki

$27.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-7005

Shroud-Engine

Note: Obtain Parts From Kawasaki

$29.99

$

Usually ships in 2-5 days

0

49089B

Toro 49089-7015

Shroud-Engine

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

49089C

Kawasaki 49089-7019

Shroud-Engine
(Superseded to 49089-7050)

Note: Obtain Parts From Kawasaki

$13.99

$

Usually ships in 2-5 days

0

59041

Kawasaki 59041-7004

Fan

Note: Obtain Parts From Kawasaki

$

$

Not available

59066

Kawasaki 59066-7005

Housing-Fan

Note: Obtain Parts From Kawasaki

$72.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-7008

Screw
(Superseded to 130BA0612)

Note: Obtain Parts From Kawasaki

$1.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-7009

Screw

Note: Obtain Parts From Kawasaki

$1.99

$

Usually ships in 2-5 days

0

92026

Kawasaki 92026-7001

SPACER (6.2X7.9X5)
(Superseded to 92153-7007)

Note: Obtain Parts From Kawasaki

$4.49

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7018

Bolt

Note: Obtain Parts From Kawasaki

$

$

Not available

92200

Kawasaki 92200-7011

Washer

Note: Obtain Parts From Kawasaki

$5.99

$

In Stock, only 1 left!

0

92210

Kawasaki 92210-7011

Nut

Note: Obtain Parts From Kawasaki

$1.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0

130A

Toro 130B616

Bolt-Flanged

Note: Obtain Parts From Kawasaki

$

$

Currently unavailable

130B

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain Parts From Kawasaki

$0.99

$

In Stock, Qty 20+

0
