74233 (Z 200) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

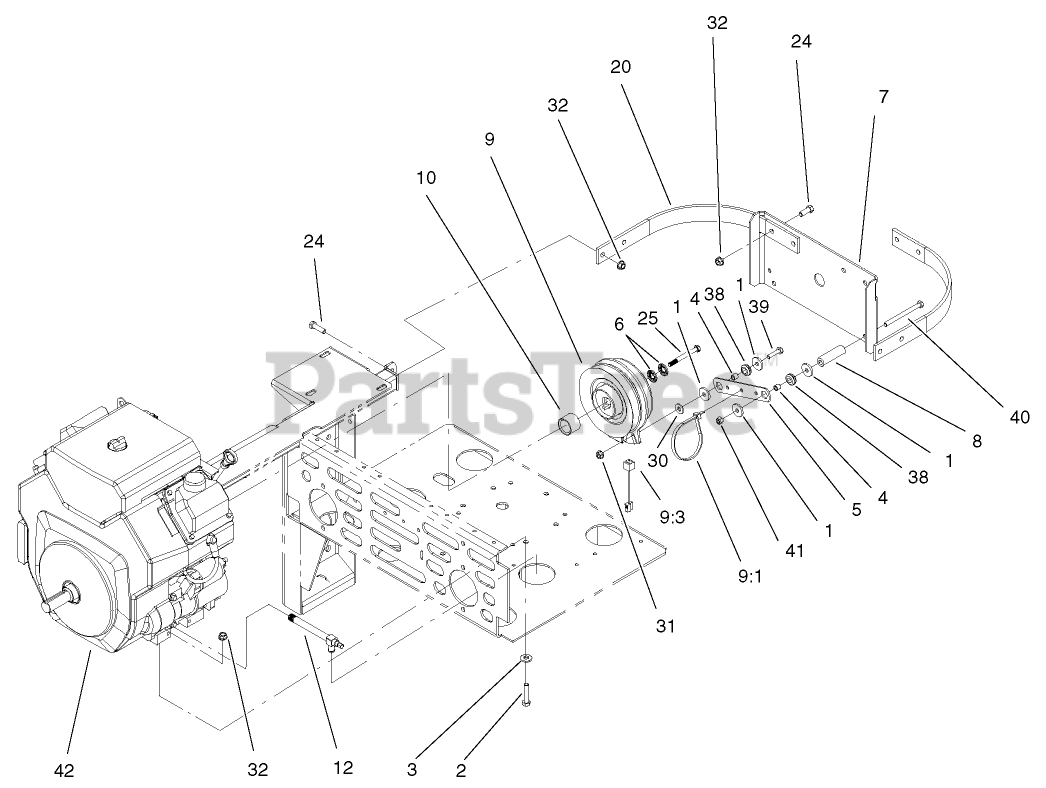

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

5

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

7

Toro 1-633615-03

GUARD-CLUTCH

$84.99

$

Usually ships in 3-6 days

0

8

Toro 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

9

Toro 103-0662

CLUTCH ASM

$503.99

$

In Stock, only 1 left!

0

9:1

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9:3

Toro 105-1670

HARNESS-JUMPER, CLUTCH

$62.99

$

Usually ships in 3-6 days

0

10

Toro 1-633453

SPACER-CLUTCH

$19.99

$

In Stock, only 1 left!

0

12

Toro 103-1996

VALVE-OIL DRAIN, LONG

$

$

Not available

20

Toro 1-643264-03

BRACKET-GUARD, TOP

$

$

Not available

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

38

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Engine-Kohler, Ch20s-64684

Note: Not serviced separately

$

$

Not available
