74232 (Z 257) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) SEAT ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

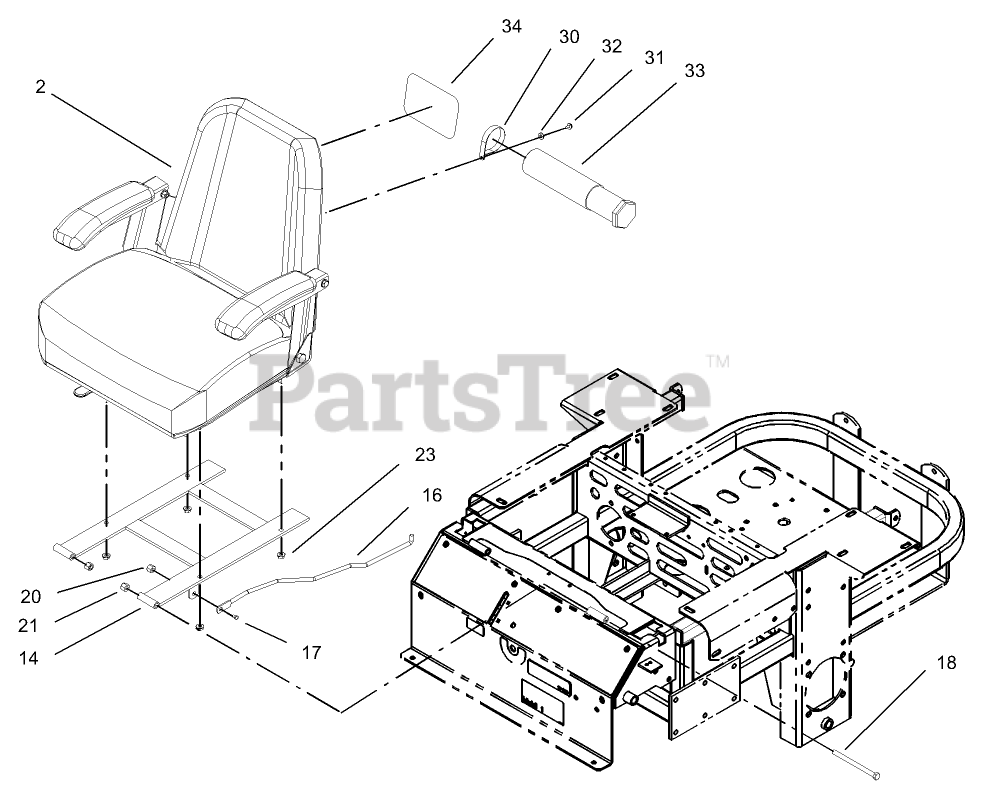

SEAT ASSEMBLY Parts Diagram

  • Title
2

Toro 1-633705

SEAT ASM

$1406.99

$

Usually ships in 3-6 days

0

14

Toro 1-632187-03

FRAME-SEAT
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

16

Toro 1-633293

ROD-HOLDUP, SEAT

$16.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

31

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

34

Toro 99-4693

DECAL

$25.99

$

In Stock, only 3 left!

0
