74232 (Z 257) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

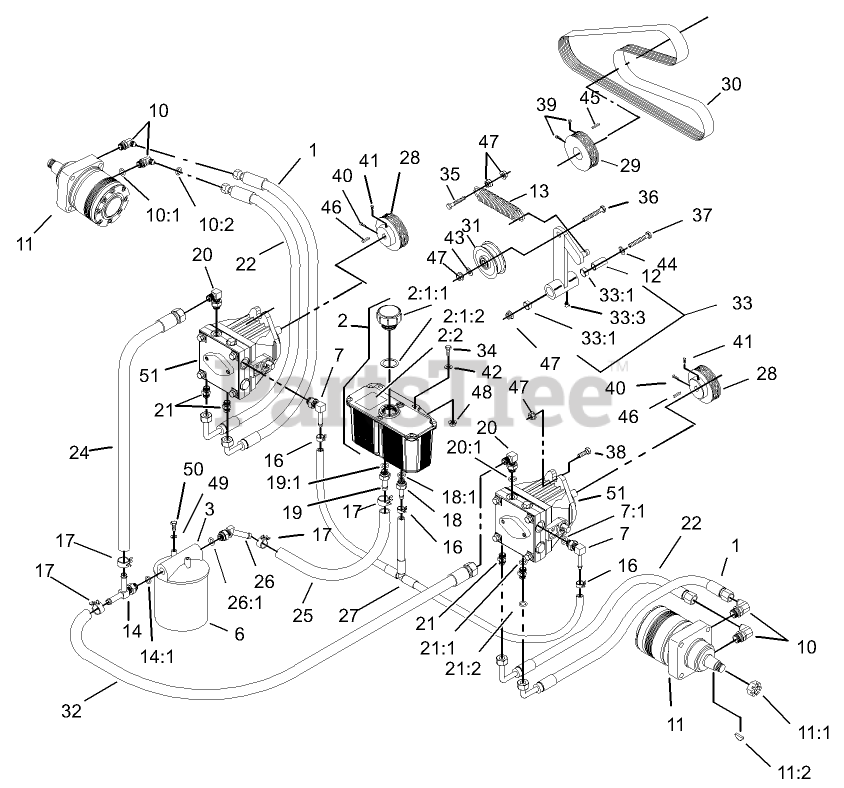

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 103-3734

HYD Hose ASM

$104.99

$

In Stock, only 2 left!

0

2

Toro 103-1947

HYD Reservoir ASM

$263.99

$

Usually ships in 3-6 days

0

2:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, only 2 left!

0

2:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

2:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

2:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

3

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

6

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

0

6

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 15

0

7

Toro 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 1 left!

0

7:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

10

Toro 1-633786

FITTING-90 DEG

$

$

Not available

10:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

10:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

11

Toro 1-523328

MOTOR-WHEEL

$1375.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

11:2

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

11:99

Toro 1-000099

SEAL KIT
(Superseded to 103-6994)

Note: Not illustrated

$330.99

$

Usually ships in 3-6 days

0

11:99

Toro 1-000139

BEARING KIT

Note: Not illustrated

$

$

Not available

11:99

Toro 103-2748

Drive Link Kit

Note: Not illustrated

$337.99

$

Usually ships in 3-6 days

0

12

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

13

Toro 103-3330

Spring-Extension
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

14

Toro 103-1828

ADAPTER-RUN, TEE

$46.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

16

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 11

0

17

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

18

Toro 103-1801

Adapter-Straight

$30.99

$

In Stock, only 1 left!

0

18:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

19

Toro 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

20

Toro 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 1 left!

0

20:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

21

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

21:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

21:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

22

Toro 103-1863

Hose-Lower

$127.99

$

In Stock, only 1 left!

0

24

Toro 103-1826

HYD Hose ASM

$21.99

$

In Stock, only 1 left!

0

25

Toro 103-1808

Hose-HYD

$21.99

$

In Stock, only 1 left!

0

26

Toro 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

27

Toro 103-1806

HYD Hose ASM

$43.99

$

In Stock, only 1 left!

0

28

Toro 1-633568

SHEAVE

$95.99

$

In Stock, only 1 left!

0

29

Toro 1-633567

SHEAVE

$112.99

$

In Stock, Qty 5

0

30

Toro 1-633749

BELT-DRIVE, PUMP

$46.99

$

In Stock, Qty 5

0

31

Toro 1-633167

SHEAVE-IDLER

$37.99

$

In Stock, Qty 7

0

32

Toro 103-1827

HYD Hose ASM

$34.99

$

In Stock, only 1 left!

0

33

Toro 1-634277

BEARING ARM ASM

$165.99

$

In Stock, only 1 left!

0

33:1

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

33:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

34

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

38

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

40

Toro 30-1710

SCREW-SET

$10.99

$

In Stock, only 2 left!

0

41

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 8

0

42

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

46

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

47

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

48

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

49

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

50

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 103-2675

PUMP-HYD

$1086.99

$

Usually ships in 3-6 days

0

51:1

Toro 103-2664

INPUT SHAFT KIT

Note: Not illustrated

$779.99

$

Usually ships in 3-6 days

0

51:2

Toro 94-6922

BEARING-THRUST

Note: Not illustrated

$62.99

$

In Stock, only 3 left!

0

51:3

Toro 103-2666

CYLINDER BLOCK KIT

Note: Not illustrated

$494.99

$

Usually ships in 3-6 days

0

51:4

Toro 105-6185

Plate-Valve

Note: Not illustrated

$101.99

$

Usually ships in 3-6 days

0

51:5

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$84.99

$

In Stock, Qty 7

0

51:7

Toro 106-2053

SHOCK VALVE KIT

Note: Not illustrated

$

$

Not available
