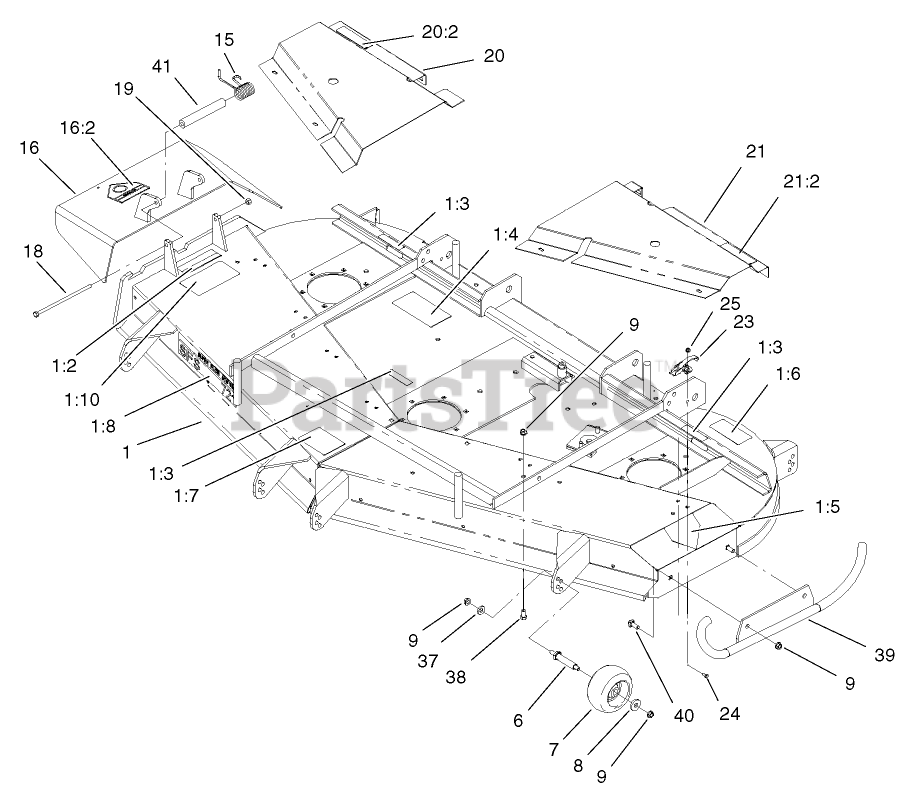

74232 (Z 257) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

  • Title
1

Toro 105-1698

DECK SERVICE ASM

$

$

Not available

1:2

Toro 104-8569

DECAL-WARNING

$

$

Not available

1:3

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

1:4

Toro 99-4686

DECAL-ROUTING, BELT

$19.99

$

In Stock, only 1 left!

0

1:5

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

1:7

Toro 98-3798

DECAL-WHEEL, GAGE

$18.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-5995

DECAL-DECK

$

$

Not available

1:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

7

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

8

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

16

Toro 105-3605

Deflector ASM

$234.99

$

Usually ships in 3-6 days

0

16:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

18

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 100-6527

RH COVER W/DECAL ASM

$

$

Not available

20:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

21

Toro 99-2623

LH COVER W/DECAL ASM

$

$

Not available

21:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

23

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

24

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

25

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

38

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

39

$

$

Not available

40

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

41

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0
