74231 (Z 257) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) STEERING CONTROL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

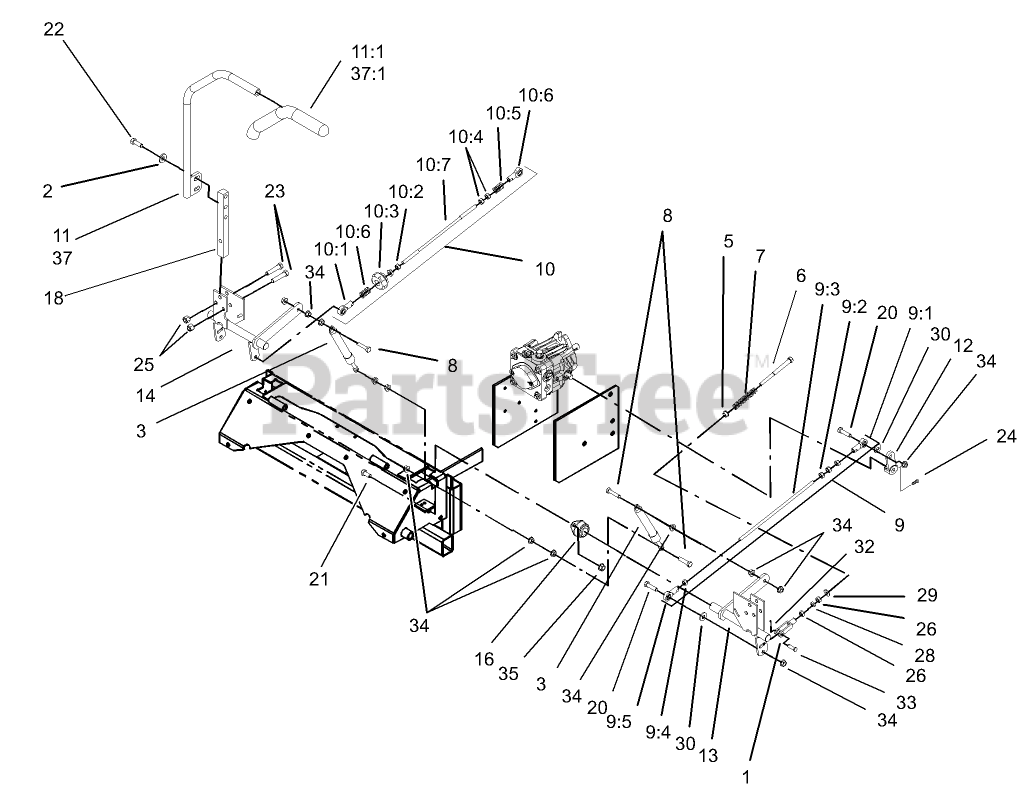

STEERING CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 103-2913

Damper-Control, Motion
(Superseded to 131-4132)

$69.99

$

In Stock, Qty 12

0

5

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

6

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

7

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

8

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 103-3074

LH Pump Linkage ASM
(Superseded to 103-4331)

$74.99

$

Usually ships in 3-6 days

0

9:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

9:2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

9:3

Toro 103-3064

Link-Rod, Tracking

$42.99

$

In Stock, only 1 left!

0

9:4

Toro 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

9:5

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

10

Toro 103-3061

Tracking Rod ASM
(Superseded to 103-4330)

$84.99

$

Usually ships in 3-6 days

0

10:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

10:2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

10:3

Toro 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

10:4

Toro 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

10:5

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

10:6

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

10:7

Toro 103-3064

Link-Rod, Tracking

$42.99

$

In Stock, only 1 left!

0

11

Toro 103-0632

RH LEVER ASM

$95.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

12

Toro 1-632208

ARM-CONTROL, PUMP

$28.99

$

In Stock, Qty 20+

0

13

Toro 1-642319

CONTROL-MOTION, LH

$223.99

$

Usually ships in 3-6 days

0

14

Toro 1-642320

CONTROL-MOTION, RH

$177.99

$

Usually ships in 3-6 days

0

16

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

18

Toro 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

20

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

22

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

28

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

34

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Toro 103-0631

LH LEVER ASM

$95.99

$

Usually ships in 3-6 days

0

37:1

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0
