74230 (Z 257) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) MAIN FRAME ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

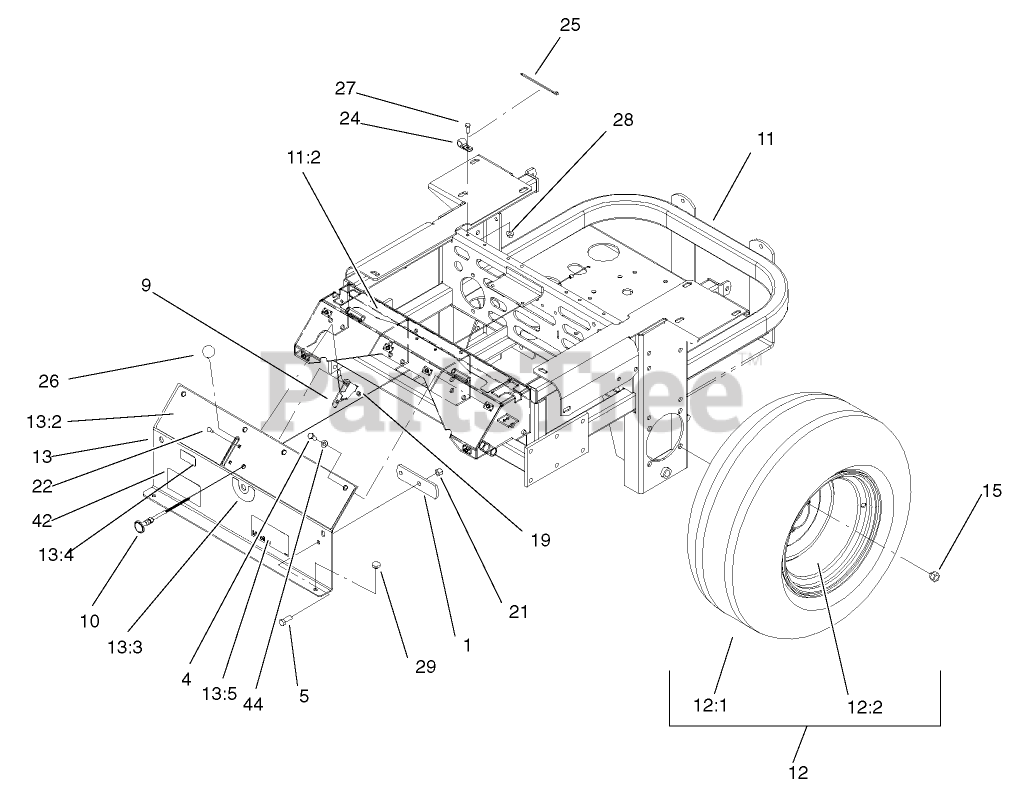

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 2 left!

0

10

Toro 1-603336

CONTROL-CHOKE

$41.99

$

In Stock, only 2 left!

0

11

Toro 105-3648

Main Frame ASM

$

$

Not available

11:2

Toro 103-2433

DECAL-CONSOLE, TOP

$

$

Not available

12

Toro 1-653010

WHEEL AND TIRE ASM

$484.99

$

Usually ships in 3-6 days

0

12:1

Toro 1-653160

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

12:2

Toro 1-653158

WHEEL

$182.99

$

Usually ships in 3-6 days

0

13

Toro 99-4623

CONSOLE ASM

$

$

Not available

13:2

Toro 100-4311

DECAL-PANEL, CONTROL

$

$

Not available

13:3

Toro 103-0262

DECAL-VALVE, FUEL

$6.99

$

In Stock, Qty 11

0

13:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

13:5

Toro 104-8172

DECAL-MOBIL 1

$

$

Not available

15

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

24

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Toro 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

29

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

42

Toro 106-6561

Decal-Z257

$

$

Not available

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
