74228 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) GROUP 11-EXHAUST ASSEMBLY KOHLER CH25S-68695 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

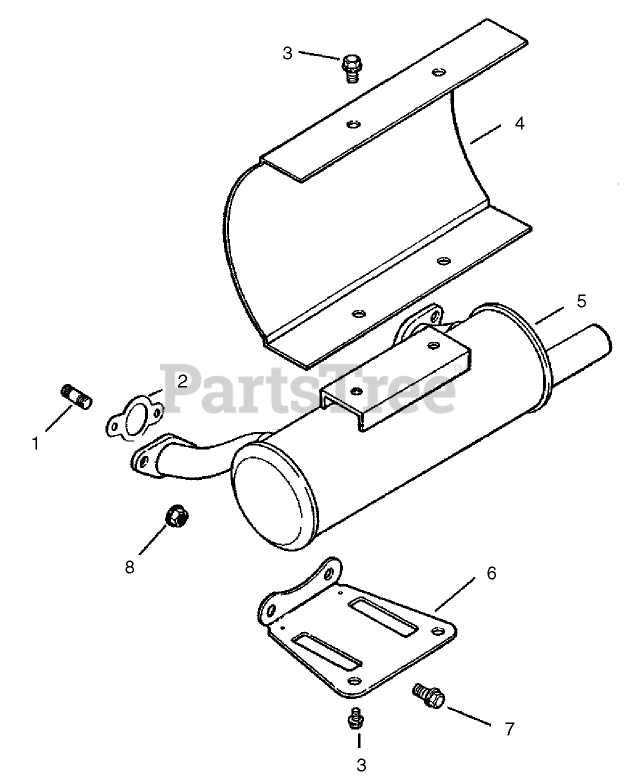

GROUP 11-EXHAUST ASSEMBLY KOHLER CH25S-68695 Parts Diagram

  • Title

1

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 3 left!

0

2

Kohler 24 041 02-S

Gasket-Exhaust
(Superseded to 25 041 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

3

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

4

Kohler 24 314 04-S

Shield-Heat
(Superseded to 24 314 50-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$40.99

$

In Stock, only 1 left!

0

5

Kohler 24 068 18-S

Muffler
(Superseded to 24 068 132-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$279.99

$

In Stock, only 1 left!

0

6

Kohler 24 126 12-S

Bracket-Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

7

Kohler M-839020-S

SCREW-HF (M8X1.25X20)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

8

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 24 755 113-S

Gasket Set
(Superseded to 24 755 394-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$208.99

$

In Stock, only 2 left!

0
