74226 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) GUARD ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

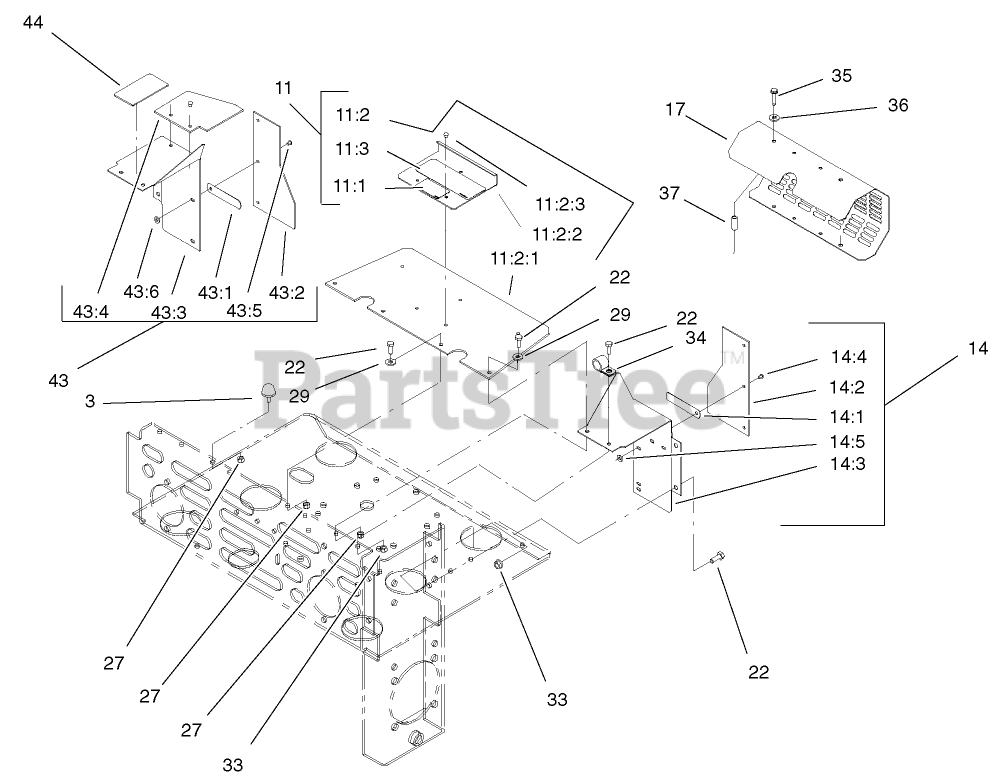

GUARD ASSEMBLY Parts Diagram

  • Title

3

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

11

Toro 1-644276

SHIELD ASM

$106.99

$

In Stock, only 1 left!

0

11:1

Toro 1-633462

DECAL-IMPORTANT

$5.49

$

In Stock, only 4 left!

0

11:2

Toro 1-634308

SHIELD AND LIFT ASM

$98.99

$

Usually ships in 3-6 days

0

11:2:1

Toro 103-1308

SHIELD-ENGINE

$31.99

$

In Stock, only 2 left!

0

11:2:2

Toro 1-633300-03

LIFT-SHIELD

$16.99

$

Usually ships in 3-6 days

0

11:2:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

11:3

Toro 103-0368

DECAL-DEVICES, ROTATING
(Superseded to 103-5881)

$6.49

$

In Stock, Qty 10

0

14

Toro 1-634796

LH SHIELD ASM

$

$

Not available

14:1

Toro 1-523285

CLIP-BAFFLE, REAR

$12.99

$

Usually ships in 3-6 days

0

14:2

Toro 1-633301

SHIELD-ENGINE

$16.99

$

Usually ships in 3-6 days

0

14:3

Toro 1-633795-03

BAFFLE-ENGINE SHIELD, LH

$

$

Not available

14:4

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

14:5

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

17

Toro 1-643313-03

GUARD-MUFFLER

$103.99

$

In Stock, only 1 left!

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

34

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Toro 1-809076

SCREW

$2.99

$

In Stock, only 3 left!

0

36

Toro 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 9

0

37

Toro 1-323236

SPACER

$7.99

$

In Stock, only 2 left!

0

43

Toro 1-644316

RH SHIELD ASM

$

$

Not available

43:1

Toro 1-523285

CLIP-BAFFLE, REAR

$12.99

$

Usually ships in 3-6 days

0

43:2

Toro 1-633301

SHIELD-ENGINE

$16.99

$

Usually ships in 3-6 days

0

43:3

Toro 1-633794-03

SHIELD-RH

$

$

Not available

43:4

Toro 1-643315

BAFFLE-COOLER, ENGINE

$13.99

$

Usually ships in 3-6 days

0

43:5

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

43:6

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

44

Toro 1-643339

DECAL-ROUTING, BELT

$

$

Not available
