74226 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210002101 - 210999999) (2001) OIL PAN/LUBRICATION ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

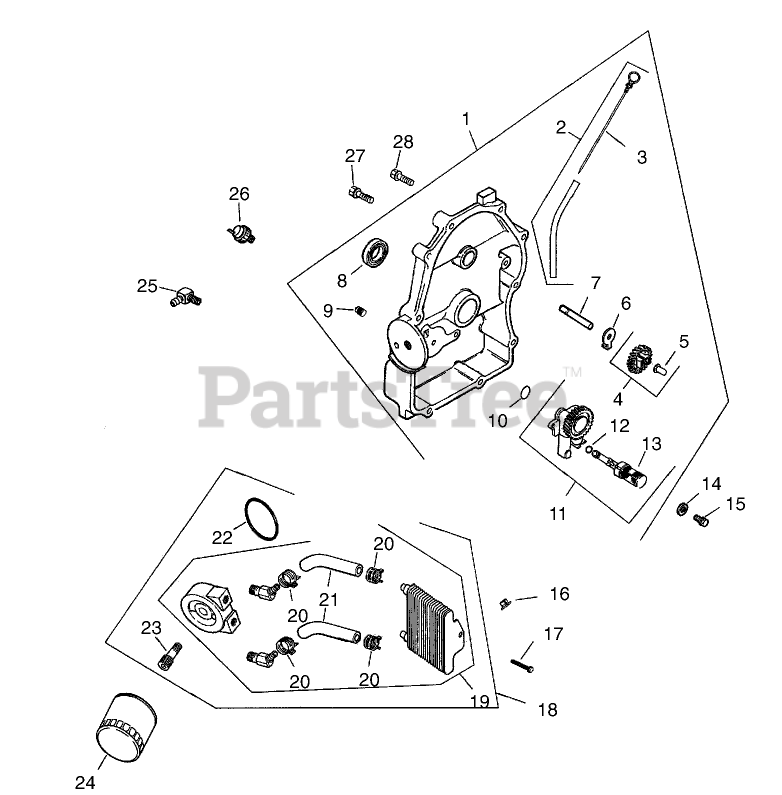

OIL PAN/LUBRICATION ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 009 83-S

Closure Plate ASM
(Superseded to 24 009 238-S)

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

DIPSTICK AND DIPSTICK TUBE ASM

$35.99

$

In Stock, Qty 7

0

3

Kohler 24 038 10-S

Dipstick

$12.99

$

In Stock, Qty 6

0

4

Kohler 24 043 12-S

GOVERNOR GEAR W/PIN KIT

$68.99

$

In Stock, Qty 12

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

$3.49

$

In Stock, Qty 9

0

6

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

9

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-Ring

$6.99

$

In Stock, only 1 left!

0

11

Kohler 24 393 10-S

Oil Pump ASM
(Superseded to 24 393 37-S)

$

$

Not available

12

Kohler 24 153 01-S

O-RING

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 381 04-S

TUBE-PICK UP, OIL

$34.99

$

In Stock, only 1 left!

0

14

Kohler M-631005-S

WASHER-FLAT (6 MM)

$2.49

$

In Stock, only 1 left!

0

15

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 3 left!

0

16

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

17

Kohler 25 086 49-S

SCREW-TAPPING
(Superseded to 24 086 12-S)

$

$

Not available

18

Kohler 54 755 21-S

OIL COOLER KIT (METAL)

$257.99

$

Usually ships in 2-5 days

0

19

Kohler 24 594 09-S

Cooler, oil (Includes 17,18)
(Superseded to 24 594 28-S)

$257.99

$

Usually ships in 2-5 days

0

21

Kohler 24 326 15-S

Hose, oil
(Superseded to 24 326 17-S)

$16.99

$

In Stock, only 2 left!

0

22

Kohler 24 153 13-S

O-Ring
(Superseded to 24 153 25-S)

$6.99

$

In Stock, only 2 left!

0

23

Kohler 28 136 01-S

Nipple-Filter, Oil

$90.99

$

Usually ships in 2-5 days

0

24

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

25

Kohler 25 155 02-S

Connector-Hose, 90 Deg

$14.99

$

In Stock, only 1 left!

0

26

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 1 left!

0

27

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

28

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

$2.49

$

In Stock, Qty 5

0

Kohler 24 113 25-S

DECAL-COOLER, OIL

$

$

Not available
