74226 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210002101 - 210999999) (2001) BLOWER HOUSING AND BAFFLE ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

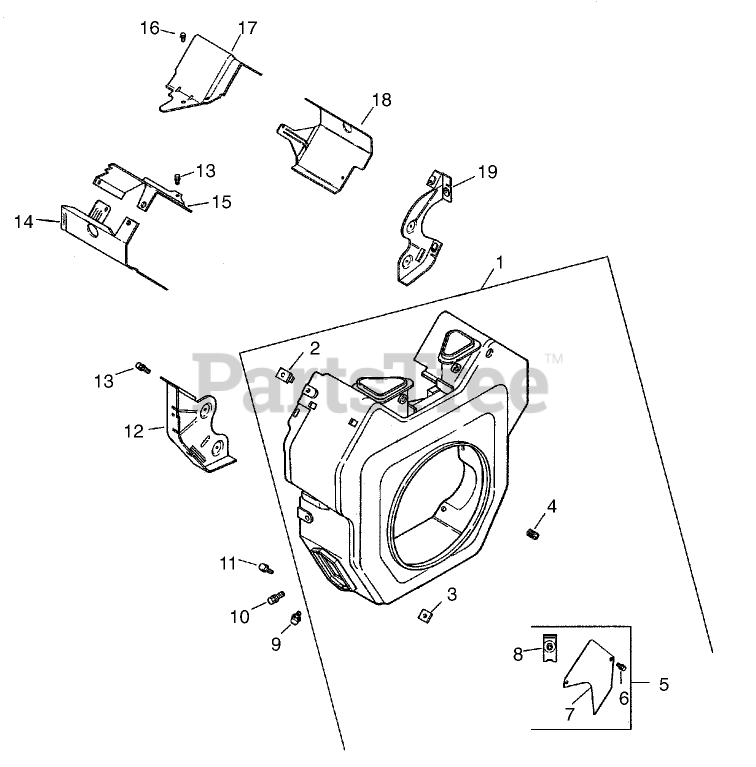

BLOWER HOUSING AND BAFFLE ASSEMBLY Parts Diagram

  • Title

2

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

3

Kohler 24 100 02-S

NUT-PLASTIC

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 086 43-S

Screw-Set (10-24X.25)

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

8

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

9

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

$2.49

$

In Stock, only 2 left!

0

10

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

11

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

12

Kohler 24 146 19-S

Plate-Backing (No. 2 Side)
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

13

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

14

Kohler 24 063 39-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

15

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

$9.49

$

Usually ships in 2-5 days

0

16

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, only 3 left!

0

17

Kohler 24 063 24-S

Baffle-Valley, No. 1 side
(Superseded to 24 063 59-S)

$6.49

$

In Stock, only 1 left!

0

18

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

19

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

$

$

Not available
