74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) GROUP 10-AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH23S-76569 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

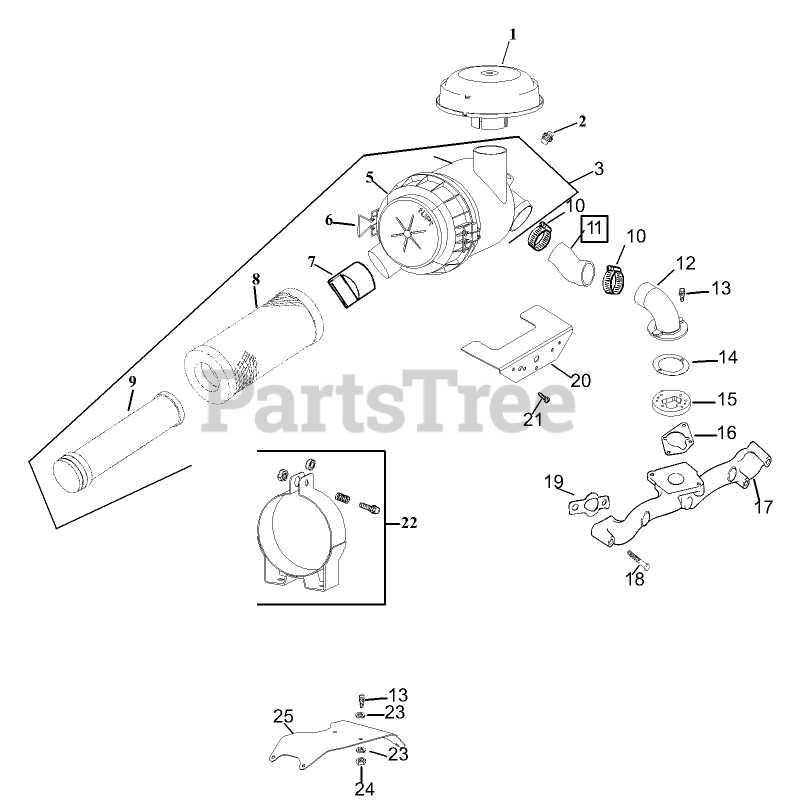

GROUP 10-AIR INTAKE/FILTRATION ASSEMBLY KOHLER CH23S-76569 Parts Diagram

  • Title

1

Kohler 25 324 02-S

Hood-Cleaner, Air
(Superseded to 25 324 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$49.99

$

In Stock, only 1 left!

0

2

Kohler 25 139 20-S

Plug-Pipe

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.99

$

Usually ships in 2-5 days

0

3

Kohler 25 048 07-S

Cleaner, heavy duty air (Includes 4-9)
(Superseded to 25 048 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$143.99

$

Usually ships in 2-5 days

0

4

Kohler 25 081 01-S

Housing-Air Cleaner, Heavy Duty

Note: Call PartsTree Customer Service for more information on Kohler Parts

$140.99

$

In Stock, only 1 left!

0

5

Kohler 25 096 06-S

AIR CLEANER COVER ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$87.99

$

In Stock, only 1 left!

0

6

Kohler 25 154 05-S

Clip
(Superseded to 62 154 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 12

0

7

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$21.99

$

In Stock, only 3 left!

0

8

Kohler 25 083 01-S

Element-Air Filter, Primary

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

9

Kohler 25 083 04-S

Element-Air Filter, Safety

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

10

Kohler 25 237 07-S

Clamp-Hose
(Superseded to 25 237 21-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

In Stock, only 1 left!

0

11

Kohler 24 326 32-S

Hose-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

Usually ships in 2-5 days

0

12

Kohler 24 029 21-S

Adapter-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$139.99

$

Usually ships in 2-5 days

0

13

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

14

Kohler 24 041 34-S

Gasket-Adapter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 24 029 31-S

Adapter
(Superseded to 24 029 68-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$183.99

$

Usually ships in 2-5 days

0

16

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

17

Kohler 24 164 14-S

Manifold-Intake

Note: Call PartsTree Customer Service for more information on Kohler Parts

$229.99

$

Usually ships in 2-5 days

0

18

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

19

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

20

Kohler 24 314 25-S

Shield-Debris

Note: Call PartsTree Customer Service for more information on Kohler Parts

$44.99

$

Usually ships in 2-5 days

0

21

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

22

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

23

Kohler X-25-73-S

Washer-Flat (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

24

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

25

Kohler 24 126 98-S

Bracket, Air Cleaner
(Superseded to 24 126 142-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$19.99

$

Usually ships in 2-5 days

0

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Not available
