74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) SEAT ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

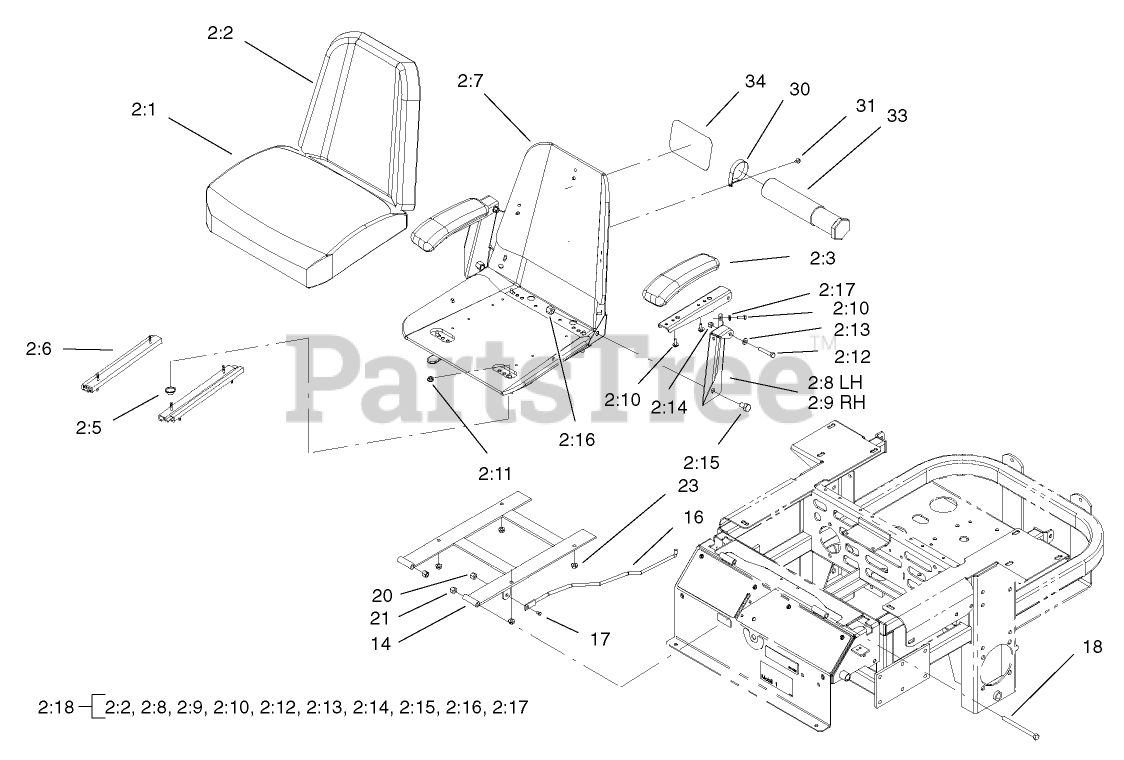

SEAT ASSEMBLY Parts Diagram

  • Title
2:1

Toro 103-0290

CUSHION-SEAT, BOTTOM
(Superseded to 103-3521)

$259.99

$

In Stock, Qty 5

0

2:2

Toro 104-7754

CUSHION-SEAT, BACK

$514.99

$

In Stock, only 2 left!

0

2:3

Toro 1-633710

CUSHION-ARMREST
(Superseded to 110-4163)

$94.99

$

Usually ships in 3-6 days

0

2:5

Toro 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

2:6

Toro 1-643255

TRACK-SEAT

$205.99

$

In Stock, only 2 left!

0

2:7

Toro 1-633859

FRAME-SEAT

$191.99

$

In Stock, only 3 left!

0

2:8

Toro 105-3622

Bracket-Armrest, LH

$111.99

$

Usually ships in 3-6 days

0

2:9

Toro 105-3621

Bracket-Armrest, RH

$111.99

$

Usually ships in 3-6 days

0

2:10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2:11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2:12

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

2:13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2:14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2:15

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

2:16

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

2:17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2:18

Toro 105-3620

ARMREST KIT

$429.99

$

Usually ships in 3-6 days

0

2

Toro 1-633705

SEAT ASM

$1406.99

$

Usually ships in 3-6 days

0

14

Toro 1-632187-03

FRAME-SEAT
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

16

Toro 1-633293

ROD-HOLDUP, SEAT

$15.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

31

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

34

Toro 99-4693

DECAL

$25.99

$

In Stock, only 1 left!

0
