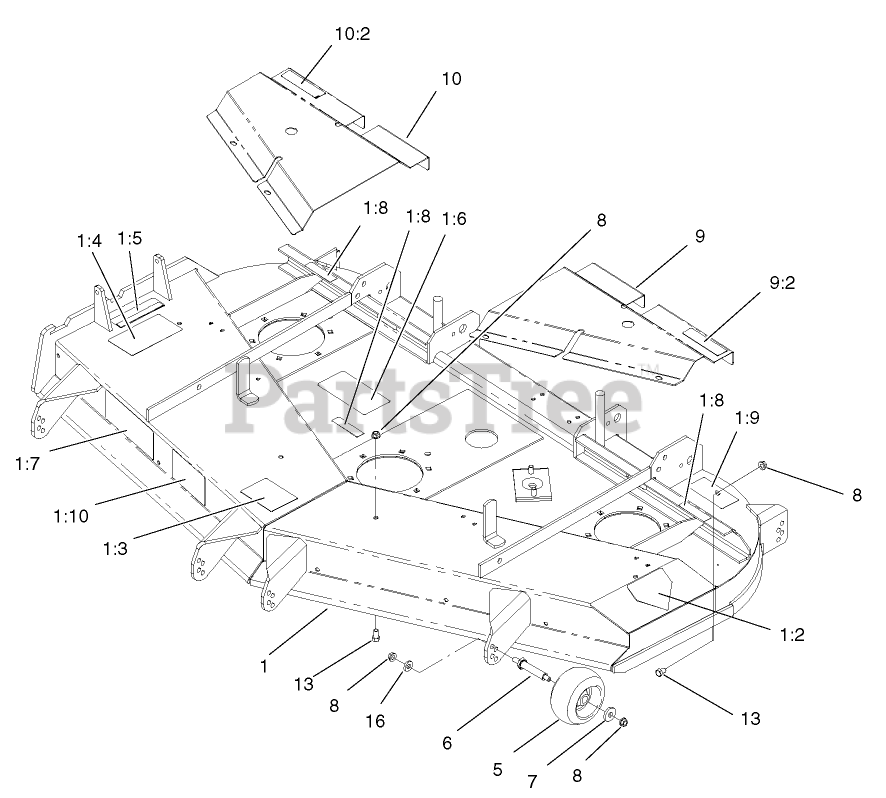

74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1697

DECK SERVICE ASM
(Superseded to 106-5864)

$

$

Not available

1:2

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, Qty 6

0

1:3

Toro 98-3798

DECAL-WHEEL, GAGE

$19.99

$

Usually ships in 3-6 days

0

1:4

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

1:5

Toro 104-8569

DECAL-WARNING

$

$

Not available

1:6

Toro 99-4686

DECAL-ROUTING, BELT

$20.99

$

In Stock, only 1 left!

0

1:7

Toro 99-4619

DECAL-SFS

$

$

Not available

1:8

Toro 98-5954

DECAL-COVER, MISSING

$9.99

$

In Stock, only 2 left!

0

1:9

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$12.99

$

Usually ships in 3-6 days

0

1:10

Toro 99-4620

DECAL-DECK

$27.99

$

Usually ships in 3-6 days

0

5

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$28.99

$

In Stock, Qty 20+

0

7

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 98-5955

LH COVER ASM

$

$

Not available

9:2

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

10

Toro 98-5956

RH COVER ASM

$

$

Not available

10:2

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

13

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0
