74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210002101 - 210999999) (2001) ENGINE CONTROL ASSEMBLY - GROUP 9 KOHLER CH23S-76550 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

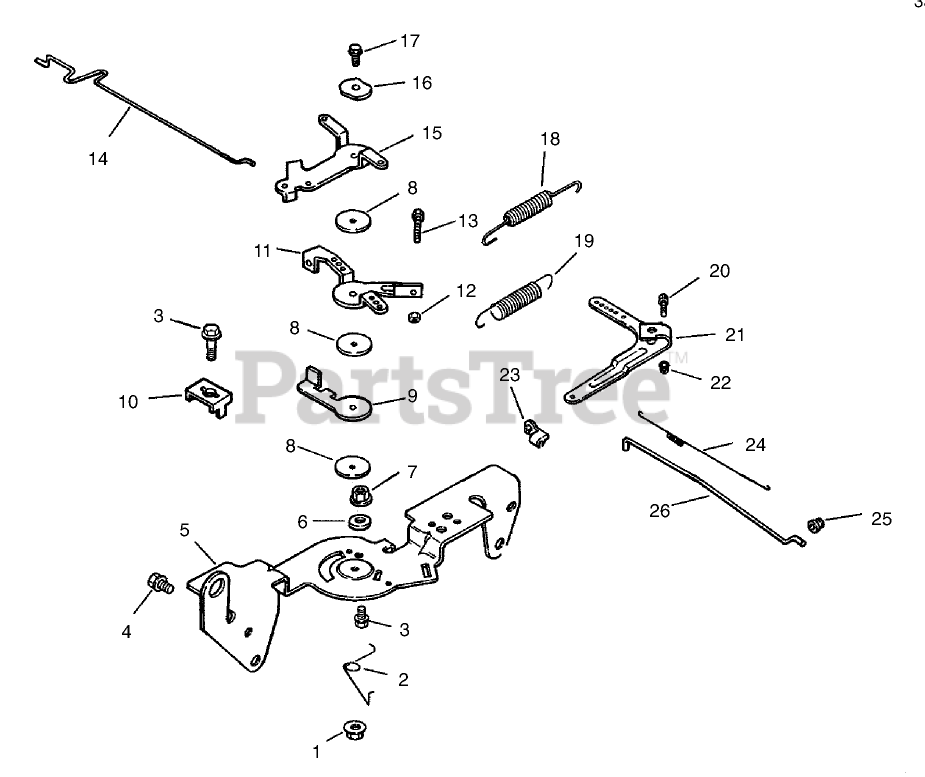

ENGINE CONTROL ASSEMBLY - GROUP 9 KOHLER CH23S-76550 Parts Diagram

  • Title
1

Kohler M-547050-S

NUT-LOCK (M5X.8)

$2.49

$

In Stock, only 2 left!

0

2

Kohler 24 089 03-S

SPRING-RETURN, CHOKE

$2.99

$

In Stock, Qty 12

0

3

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

5

Kohler 24 126 56-S

Bracket-Control
(Superseded to 24 126 263-S)

$10.99

$

In Stock, only 1 left!

0

6

Kohler X-20-1-S

Washer-Lock (.25)

$3.99

$

In Stock, only 1 left!

0

7

Kohler M-541050-S

Nut-HF (M5x0.8)

$2.99

$

In Stock, Qty 10

0

8

Kohler 24 468 01-S

WASHER-FLAT (5.5MM)

$2.49

$

In Stock, only 2 left!

0

9

Kohler 24 090 07-S

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

10

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

11

Kohler 24 090 03-S

Lever-Control, Throttle

$13.99

$

In Stock, only 1 left!

0

12

Kohler M-446030-S

NUT (M4X0.7)

$2.49

$

In Stock, Qty 5

0

13

Kohler M-401030-S

Screw (M4x0.7x30)

$3.49

$

In Stock, Qty 10

0

14

Kohler 24 079 02-S

Linkage-Choke
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0

15

Kohler 24 090 05-S

LEVER-CHOKE

$5.49

$

In Stock, only 2 left!

0

16

Kohler 41 468 03-S

WASHER-SPRING (1/4)

$3.49

$

In Stock, only 2 left!

0

17

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

18

Kohler 24 089 51-S

Spring-Limiter, Throttle

$5.49

$

In Stock, only 1 left!

0

20

Kohler 24 211 03-S

BOLT-SQ NECK, RD HD (M6X1.0X25)

$2.49

$

In Stock, Qty 15

0

21

Kohler 24 090 33-S

Lever-Governor
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

22

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

$4.49

$

In Stock, Qty 9

0

23

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

$5.99

$

In Stock, Qty 13

0

24

Kohler 24 089 01-S

SPRING-LINKAGE

$6.49

$

In Stock, only 4 left!

0

25

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

$5.99

$

In Stock, Qty 19

0

26

Kohler 24 079 01-S

Linkage-Throttle

$3.99

$

In Stock, Qty 7

0
