74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210002100) (2001) SPINDLE AND PULLEY ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

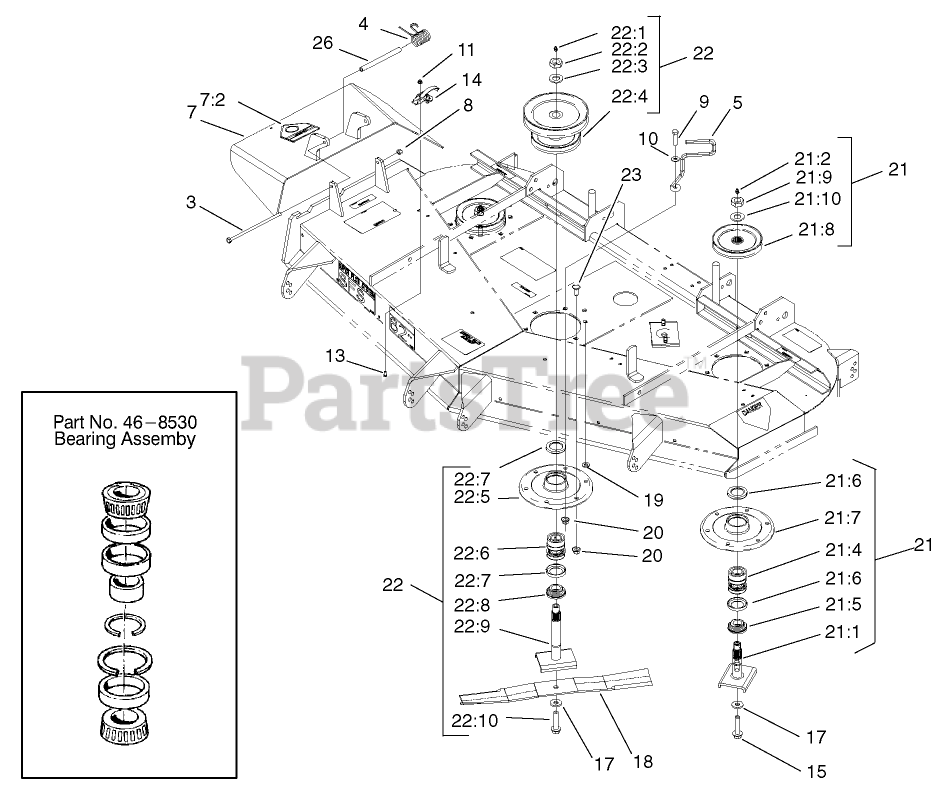

SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title
3

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

4

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

5

Toro 99-8933

GUIDE-BELT

$84.99

$

Usually ships in 3-6 days

0

7

Toro 104-7763

DEFLECTOR ASM
(Superseded to 105-3605)

$234.99

$

Usually ships in 3-6 days

0

7:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

13

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

15

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 11

0

17

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

18

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$26.99

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Toro 99-4640

OUTER SPINDLE ASM

$446.99

$

In Stock, only 1 left!

0

21:1

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

21:2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

21:4

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, Qty 7

0

21:5

Toro 27-0950

SPACER

$31.99

$

In Stock, only 2 left!

0

21:6

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 11

0

21:7

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

21:8

Toro 99-4614

PULLEY AND HUB ASM

$115.99

$

Usually ships in 3-6 days

0

21:9

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21:10

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

22

Toro 99-4944

Middle Spindle ASM
(Superseded to 105-1688)

$543.99

$

In Stock, only 1 left!

0

22:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

22:2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

22:3

Toro 92-5836

WASHER

$5.99

$

In Stock, Qty 11

0

22:4

Toro 99-4939

PULLEY AND HUB ASM

$134.99

$

In Stock, only 3 left!

0

22:5

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

22:6

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, Qty 7

0

22:7

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 11

0

22:8

Toro 27-0950

SPACER

$31.99

$

In Stock, only 2 left!

0

22:9

Toro 51-3551

Shaft-Spindle
(Superseded to 105-1686)

$206.99

$

In Stock, only 2 left!

0

22:10

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 11

0

23

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

26

Toro 104-8555

SPACER-MOUNTING, DEFLECTOR
(Superseded to 105-4622)

$10.99

$

In Stock, Qty 5

0
