74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210002100) (2001) SHIELDS AND CLUTCH ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

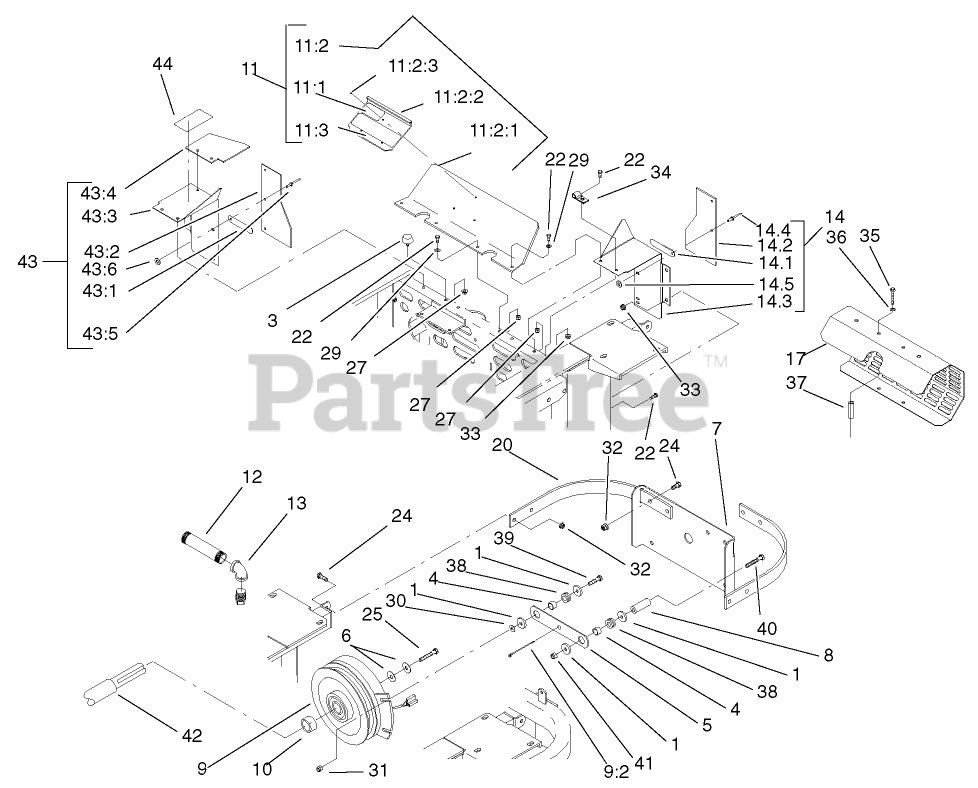

SHIELDS AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

3

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

4

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

5

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

7

Toro 1-633615-03

GUARD-CLUTCH

$84.99

$

Usually ships in 3-6 days

0

8

Toro 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

9

Toro 103-0662

CLUTCH ASM

$503.99

$

In Stock, only 1 left!

0

10

Toro 1-633453

SPACER-CLUTCH

$19.99

$

In Stock, only 2 left!

0

11

Toro 1-644276

SHIELD ASM

$106.99

$

In Stock, only 1 left!

0

11:1

Toro 1-633462

DECAL-IMPORTANT

$5.49

$

In Stock, only 4 left!

0

11:2

Toro 1-634308

SHIELD AND LIFT ASM

$98.99

$

Usually ships in 3-6 days

0

11:2:1

Toro 1-633298

SHIELD-ENGINE

$

$

Not available

11:2:2

Toro 1-633300-03

LIFT-SHIELD

$16.99

$

Usually ships in 3-6 days

0

11:2:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

11:3

Toro 103-0368

DECAL-DEVICES, ROTATING
(Superseded to 103-5881)

$6.49

$

In Stock, Qty 10

0

12

Toro 1-543232

NIPPLE

$21.99

$

Usually ships in 3-6 days

0

13

Toro 1-303428

ELBOW-90 DEG

$

$

Not available

14

Toro 1-634796

LH SHIELD ASM

$

$

Not available

14:1

Toro 1-523285

CLIP-BAFFLE, REAR

$12.99

$

Usually ships in 3-6 days

0

14:2

Toro 1-633301

SHIELD-ENGINE

$16.99

$

Usually ships in 3-6 days

0

14:3

Toro 1-633795-03

BAFFLE-ENGINE SHIELD, LH

$

$

Not available

14:4

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

14:5

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

17

Toro 1-643313-03

GUARD-MUFFLER

$103.99

$

In Stock, only 1 left!

0

20

Toro 1-643264-03

BRACKET-GUARD, TOP

$

$

Not available

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

34

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Toro 1-809076

SCREW

$2.99

$

In Stock, only 3 left!

0

36

Toro 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 9

0

37

Toro 1-323236

SPACER

$7.99

$

In Stock, only 2 left!

0

38

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 12

0

42

Toro 1-643026

Engine-Kohler, 23hp

$

$

Currently unavailable

43

Toro 1-644316

RH SHIELD ASM

$

$

Not available

43:1

Toro 1-523285

CLIP-BAFFLE, REAR

$12.99

$

Usually ships in 3-6 days

0

43:2

Toro 1-633301

SHIELD-ENGINE

$16.99

$

Usually ships in 3-6 days

0

43:3

Toro 1-633794-03

SHIELD-RH

$

$

Not available

43:4

Toro 1-643315

BAFFLE-COOLER, ENGINE

$13.99

$

Usually ships in 3-6 days

0

43:5

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

43:6

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

44

Toro 1-643339

DECAL-ROUTING, BELT

$

$

Not available
