74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210002100) (2001) CASTER AND WHEEL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

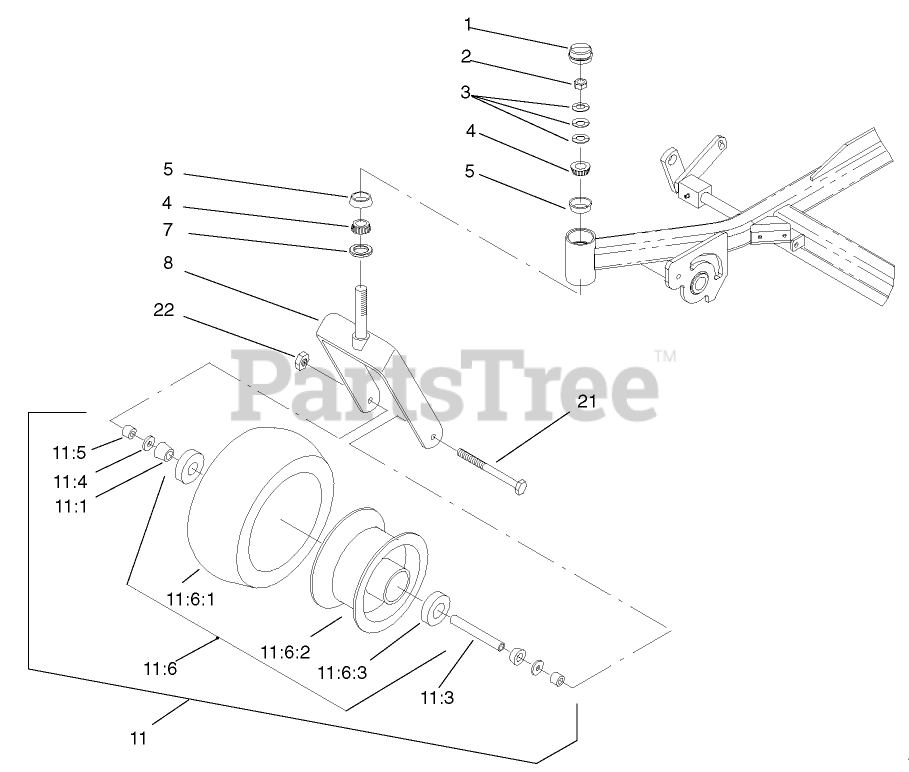

CASTER AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-543513

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

2

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

3

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

5

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

7

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

8

Toro 1-642111-01

CASTER
(Superseded to 116-8887)

$149.99

$

In Stock, only 1 left!

0

11

Toro 1-644251

CASTER WHEEL ASM

$234.99

$

In Stock, only 1 left!

0

11:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

11:3

Toro 1-633959

SPACER-CASTER, FRONT

$18.99

$

In Stock, only 2 left!

0

11:4

Toro 1-633580

SEAL-BEARING

$9.49

$

In Stock, Qty 8

0

11:5

Toro 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 20+

0

11:6

Wheel AND Tire ASM

$

$

Not available

11:6:1

Toro 1-523009

TIRE

$113.99

$

Usually ships in 3-6 days

0

11:6:2

Toro 1-633987

WHEEL

$232.99

$

In Stock, only 1 left!

0

11:6:3

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

21

Toro 325-24

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

22

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0
