74219 (Z 256) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 10-AIR INTAKE/FILTRATION (CH26S 78511 KOHLER) Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

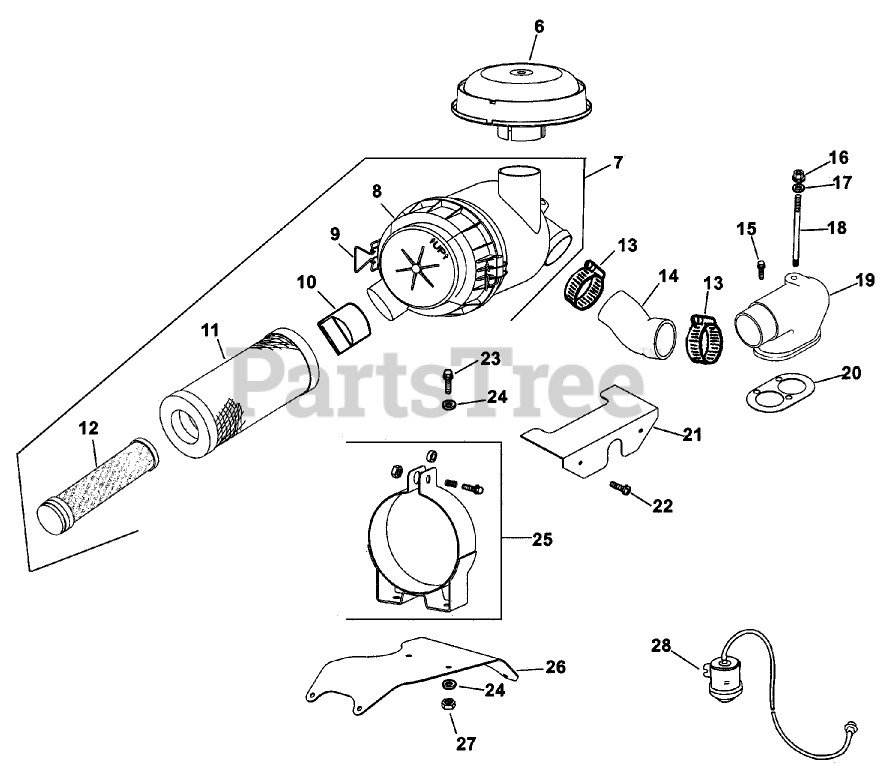

GROUP 10-AIR INTAKE/FILTRATION (CH26S 78511 KOHLER) Parts Diagram

  • Title

6

Kohler 25 324 02-S

Hood-Cleaner, Air
(Superseded to 25 324 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$49.99

$

Usually ships in 2-5 days

0

7

Kohler 25 048 07-S

Cleaner ASM, Air (Incl. 8-12)
(Superseded to 25 048 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$143.99

$

Usually ships in 2-5 days

0

8

Kohler 25 096 06-S

AIR CLEANER COVER ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$87.99

$

In Stock, only 1 left!

0

9

Kohler 25 154 05-S

Clip
(Superseded to 62 154 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

In Stock, Qty 12

0

10

Kohler 24 462 07-S

Valve-Ejector, Dust

Note: Call PartsTree Customer Service for more information on Kohler Parts

$21.99

$

In Stock, only 3 left!

0

11

Kohler 25 083 01-S

Element-Air Filter, Primary

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

12

Kohler 25 083 04-S

Element-Air Filter, Safety

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

13

Kohler X-426-9-S

Clamp
(Superseded to 25 237 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 3 left!

0

14

Kohler 24 326 32-S

Hose-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

Usually ships in 2-5 days

0

15

Kohler M-644025-S

Screw-HSH

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

16

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

17

Kohler 25 468 01-S

Washer-Copper

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

Usually ships in 2-5 days

0

18

Kohler M-629122-S

STUD-CARBURETOR (M6X1.0X122)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

19

Kohler 24 029 33-S

Remote Air CleanerAdapter ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$176.99

$

Usually ships in 2-5 days

0

20

Kohler 24 041 36-S

Gasket-Base, Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

21

Kohler 24 314 28-S

Shield-Debris

Note: Call PartsTree Customer Service for more information on Kohler Parts

$382.99

$

Usually ships in 2-5 days

0

22

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

23

Kohler M-639016-S

Screw-HF (M6x1.0x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

24

Kohler X-25-73-S

Washer-Flat (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

25

Kohler 25 126 02-S

Air Cleaner Bracket ASM
(Superseded to 24 126 191-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

26

Kohler 24 126 98-S

Bracket, Air Cleaner
(Superseded to 24 126 142-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$19.99

$

Usually ships in 2-5 days

0

27

Kohler M-647060-S

Nut-Lock (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

28

Kohler 25 755 24-S

Air Filter Gauge Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$98.99

$

Usually ships in 2-5 days

0

Kohler 12 113 04-S

Decal-Cleaner, Air

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0
