74218 (Z 256) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) SHIELDS AND CLUTCH ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

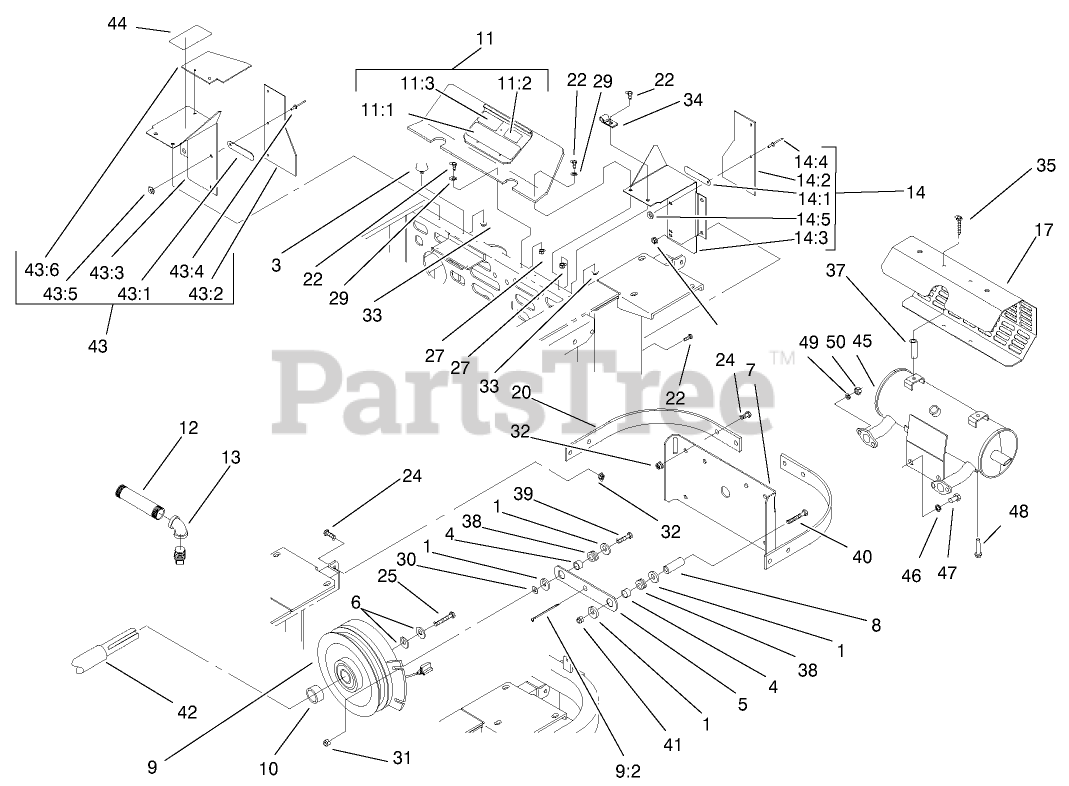

SHIELDS AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro E613235

Washer
(Superseded to 1-613235)

$1.99

$

In Stock, Qty 5

0

3

Toro E523420

Bumper
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

4

Toro E633545

Spacer
(Superseded to 1-633545)

$2.99

$

In Stock, Qty 15

0

5

Toro E633543

Strap
(Superseded to 1-633543-03)

$14.99

$

In Stock, only 1 left!

0

6

Toro E603610

Disc-Spring
(Superseded to 1-603610)

$5.49

$

In Stock, Qty 8

0

7

Toro E633615

Guard
(Superseded to 1-633615-03)

$80.99

$

Usually ships in 3-6 days

0

8

Toro E633988

Spacer
(Superseded to 1-633988)

$11.99

$

In Stock, only 1 left!

0

9

Toro E631732

Clutch
(Superseded to 103-0665)

$487.99

$

In Stock, only 1 left!

0

9:2

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

10

Toro E633179

Spacer
(Superseded to 1-633179)

$19.99

$

In Stock, Qty 5

0

11

Toro E644276

Shield ASM
(Superseded to 1-644276)

$102.99

$

In Stock, only 1 left!

0

11:1

Toro E643252

Decal-Belt, Drive
(Superseded to 1-643252)

$

$

Not available

11:2

Toro E513748

Decal-Guard
(Superseded to 1-513748)

$5.49

$

In Stock, Qty 6

0

11:3

Toro E633462

Decal-Important
(Superseded to 1-633462)

$5.49

$

In Stock, only 4 left!

0

12

Toro E543232

Nipple
(Superseded to 1-543232)

$19.99

$

Usually ships in 3-6 days

0

13

Toro E303428

Elbow
(Superseded to 1-303428)

$14.99

$

Usually ships in 3-6 days

0

14

Toro E634796

Shield-LH
(Superseded to 1-634796)

$

$

Not available

14:1

Toro E523285

Clip
(Superseded to 1-523285)

$5.49

$

Usually ships in 3-6 days

0

14:2

Toro E633301

Shield-Engine
(Superseded to 1-633301)

$15.99

$

Usually ships in 3-6 days

0

14:3

Toro E633795

Baffle-Engine Shield, LH
(Superseded to 1-633795-03)

$

$

Not available

14:4

Toro E803035

Pop Rivet
(Superseded to 1-803035)

$1.49

$

In Stock, Qty 10

0

14:5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro E643313

Guard-Muffler
(Superseded to 1-643313-03)

$100.99

$

In Stock, only 1 left!

0

20

Toro E643264

Bracket-Guard, Top
(Superseded to 1-643264-03)

$

$

Not available

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

27

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

34

Toro E633396

Clip
(Superseded to 1-633396)

$5.49

$

Usually ships in 3-6 days

0

35

Toro E809108

Screw-HWH
(Superseded to 1-809108)

$6.49

$

In Stock, only 3 left!

0

37

Toro E323236

Spacer
(Superseded to 1-323236)

$7.99

$

In Stock, only 2 left!

0

38

Toro E633630

Grommet
(Superseded to 1-633630)

$5.49

$

In Stock, Qty 8

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

42

Toro E643207

Engine-Kohler 26hp, Ch26s 78511

Note: Not illustrated

$

$

Currently unavailable

43

Toro E644316

Shield ASM, RH
(Superseded to 1-644316)

$

$

Not available

43:1

Toro E523285

Clip
(Superseded to 1-523285)

$5.49

$

Usually ships in 3-6 days

0

43:2

Toro E633301

Shield-Engine
(Superseded to 1-633301)

$15.99

$

Usually ships in 3-6 days

0

43:3

Toro E633794

Shield-RH
(Superseded to 1-633794-03)

$

$

Not available

43:4

Toro E803035

Pop Rivet
(Superseded to 1-803035)

$1.49

$

In Stock, Qty 10

0

43:5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43:6

Toro E643315

Baffle, Engine Cooler
(Superseded to 1-643315)

$13.99

$

Usually ships in 3-6 days

0

44

Toro E643339

Decal-Belt Routing
(Superseded to 1-643339)

$

$

Not available

45

Toro E643176

Muffler-26hp Kohler
(Superseded to 105-1679)

$558.99

$

Usually ships in 3-6 days

0

46

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 324-2

SCREW-HH

$4.99

$

In Stock, only 3 left!

0

48

Toro E809102

Screw-HWH
(Superseded to 9266934)

$8.99

$

In Stock, only 2 left!

0

49

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

50

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0
