74218 (Z 256) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) REAR FRAME AND WHEEL ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

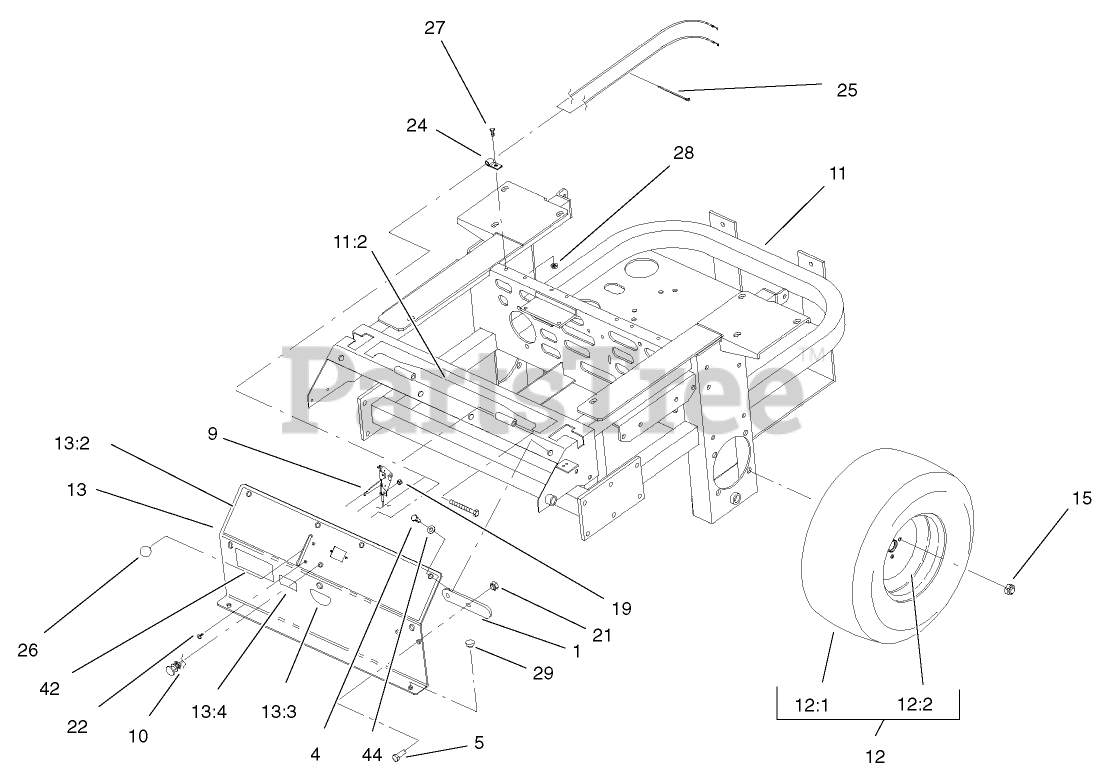

REAR FRAME AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro E633964

Stop-Park Brake
(Superseded to 1-633964-03)

$12.99

$

Usually ships in 3-6 days

0

2

Toro E633821

Seat-Suspension
(Superseded to 1-633821)

$

$

Not available

2:1

Toro E631842

Armrest Pad Kit
(Superseded to 1-631842)

Note: Not illustrated

$220.99

$

Usually ships in 3-6 days

0

2:2

Toro E631843

Boot Kit
(Superseded to 1-631843)

Note: Not illustrated

$

$

Not available

2:3

Toro E631844

Arm Assembly Kit
(Superseded to 1-631844)

Note: Not illustrated

$525.99

$

Usually ships in 3-6 days

0

2:4

Toro E631845

Pan Assembly Kit
(Superseded to 1-631845)

Note: Not illustrated

$

$

Not available

2:5

Toro E631846

Damper Kit
(Superseded to 1-631846)

Note: Not illustrated

$

$

Not available

2:6

Toro E631847

Roller Kit
(Superseded to 1-631847)

Note: Not illustrated

$

$

Not available

2:7

Toro E631848

Spring & Cable Kit
(Superseded to 1-631848)

Note: Not illustrated

$168.99

$

In Stock, only 1 left!

0

2:8

Toro E631849

Knob & Shaft Kit
(Superseded to 1-631849)

Note: Not illustrated

$

$

Not available

2:9

Toro E643281

Switch, Seat
(Superseded to 1-643281)

Note: Not illustrated

$56.99

$

Usually ships in 3-6 days

0

3

Toro 100-4329

DECAL-EFI

$

$

Not available

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro E643255

Track-Locking
(Superseded to 1-643255)

$217.99

$

In Stock, only 2 left!

0

9

Toro E633696

Cable
(Superseded to 1-633696)

$62.99

$

In Stock, only 1 left!

0

11

Toro 100-4261

Frame ASM-Rear
(Superseded to 103-2175)

$2054.99

$

Usually ships in 3-6 days

0

11:2

Toro E513747

Decal-Battery
(Superseded to 1-513747)

$7.49

$

Usually ships in 3-6 days

0

11:3

Toro E633354

Decal-Motion Control
(Superseded to 1-633354)

$

$

Not available

11:4

Toro E513929

Decal-Drive Release
(Superseded to 1-513929)

$

$

Not available

11:5

Toro E643372

Decal Hazardous Mat.
(Superseded to 1-643372)

$

$

Not available

12

Toro E633970

Wheel & Tire ASM
(Superseded to 109-8972)

$448.99

$

Usually ships in 3-6 days

0

12:1

Toro E633993

Tire
(Superseded to 1-633993)

$284.99

$

Usually ships in 3-6 days

0

12:2

Toro E633992

Wheel
(Superseded to 109-3156)

$243.99

$

In Stock, Qty 10

0

13

Toro 100-4322

CONSOLE ASM

$

$

Not available

13:2

Toro 100-4311

DECAL-PANEL, CONTROL

$

$

Not available

13:3

Toro E643233

Decal, Fuel Valve-Dual
(Superseded to 103-0261)

$7.49

$

In Stock, only 4 left!

0

13:4

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

14

Toro E632187

Frame-Seat
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

15

Toro E513011

Nut
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

16

Toro E633293

Rod-Seat Holdup
(Superseded to 1-633293)

$16.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-21

SCREW-HH
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro E807513

Bolt-CARR
(Superseded to 1-807513)

$2.99

$

In Stock, Qty 20+

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

25

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Toro E513592

Knob
(Superseded to 1-513592)

$6.99

$

In Stock, Qty 18

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro E513658

Bumper
(Superseded to 1-513658)

$6.49

$

In Stock, Qty 9

0

30

Toro 2412-133

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

31

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

34

Toro 99-4693

DECAL

$25.99

$

In Stock, only 3 left!

0

42

Toro 100-4314

DECAL-Z256E

$

$

Not available

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Toro E633872

Spacer-Stop,Seat
(Superseded to 1-633872-03)

$47.99

$

Usually ships in 3-6 days

0
