74218 (Z 256) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 8-FUEL SYSTEM (CH26S 78511 KOHLER) Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

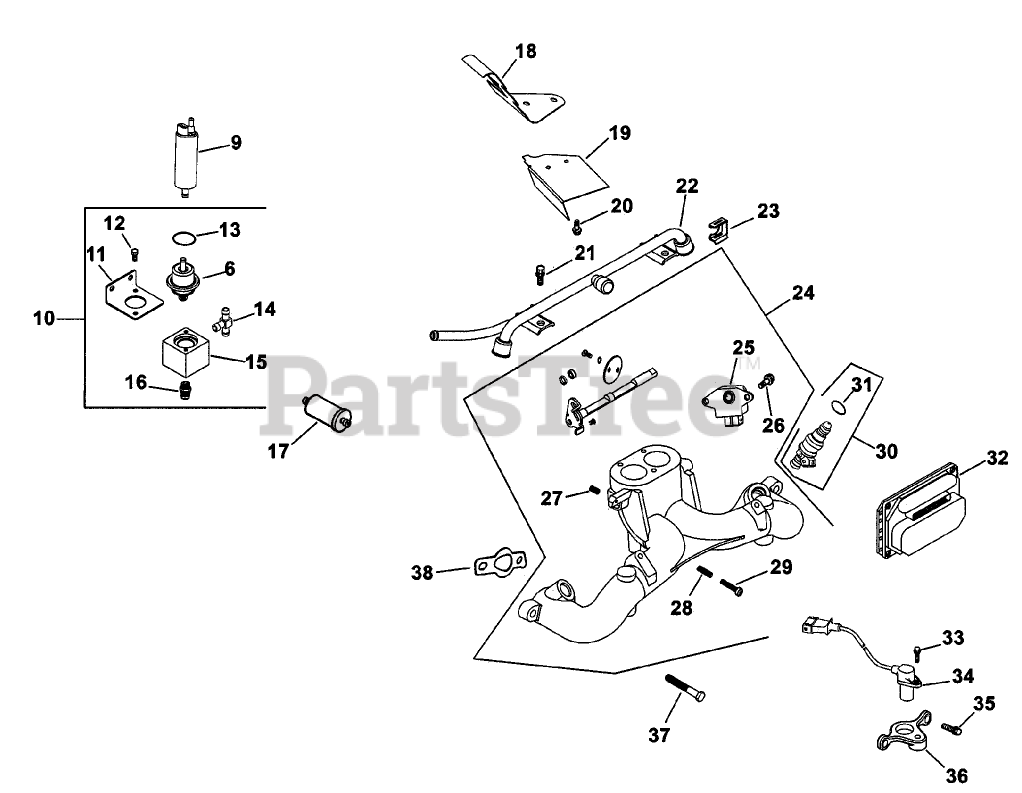

GROUP 8-FUEL SYSTEM (CH26S 78511 KOHLER) Parts Diagram

  • Title

6

Kohler 24 403 02-S

Regulator-Pressure

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler 24 393 20-S

Fuel Pump ASM
(Superseded to 24 393 52-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$367.99

$

Usually ships in 2-5 days

0

10

Kohler 24 403 12-S

Regulator ASM, Pressure (Incl.6,11-16)
(Superseded to 24 403 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$215.99

$

Usually ships in 2-5 days

0

11

Kohler 24 126 86-S

Bracket-Regulator,Horizontal
(Superseded to 24 403 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$215.99

$

Usually ships in 2-5 days

0

12

Kohler M-410010-S

Screw-HH

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 153 18-S

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 24 294 15-S

Fitting-Tee
(Superseded to 24 403 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$215.99

$

Usually ships in 2-5 days

0

15

Kohler 24 081 12-S

Housing-Regulator,Horizontal
(Superseded to 24 403 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$215.99

$

Usually ships in 2-5 days

0

16

Kohler 25 326 03-S

Connector-Hose, Straight

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 1 left!

0

17

Kohler 24 050 03-S

Filter-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$75.99

$

In Stock, only 2 left!

0

18

Kohler 24 063 37-S

Baffle-Valley

Note: Call PartsTree Customer Service for more information on Kohler Parts

$52.99

$

Usually ships in 2-5 days

0

19

Kohler 24 265 08-S

Deflector-Air
(Superseded to 24 265 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

Usually ships in 2-5 days

0

20

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 3 left!

0

21

Kohler M-639010-S

Screw-HF (M6x1.0x10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 399 04-S

Rail-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$153.99

$

Usually ships in 2-5 days

0

23

Kohler 24 154 05-S

Clip-Injector, Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

24

Kohler 24 164 38-S

Manifold ASM, Intake (Incl. 25-29 & 24 176 77-S)
(Superseded to 24 164 84-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$592.99

$

Usually ships in 2-5 days

0

25

Kohler 24 418 06-S

Sensor-Position,Throttle

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

26

Kohler M-442012-S

Screw-Head, Pan

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

27

Kohler 24 089 42-S

Spring, Idle Bump

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

28

Kohler 12 089 11-S

Spring-Control, Speed

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

29

Kohler M-442025-S

Screw-HH

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 331 01-S

Injector, Fuel (Incl. 31)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

31

Kohler 24 153 20-S

O-RING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

32

Kohler 24 584 08-S

Module-Management,Ignition
(Superseded to 24 584 22-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

33

Kohler 24 086 42-S

Screw-HF
(Superseded to 25 086 404-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

34

Kohler 24 418 03-S

Sensor-Speed, Engine

Note: Call PartsTree Customer Service for more information on Kohler Parts

$201.99

$

Usually ships in 2-5 days

0

35

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

36

Kohler 24 126 69-S

Bracket-Sensor,Speed

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

37

Kohler M-639025-S

Screw-HF
(Superseded to 25 086 294-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

38

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 7

0

Kohler 24 176 77-S

Harness, Wiring (Incl. 32)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$520.99

$

In Stock, only 1 left!

0

Kohler 24 176 77-S

Harness, Wiring (Incl. 32)

Note: Not illustrated

$520.99

$

In Stock, only 1 left!

0

Kohler 24 113 78-S

Decal-Warning, Fuel

Note: Not illustrated

$29.99

$

Usually ships in 2-5 days

0

Kohler 24 113 78-S

Decal-Warning, Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

Usually ships in 2-5 days

0
