74216 (Z 283 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) REAR HOOD ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

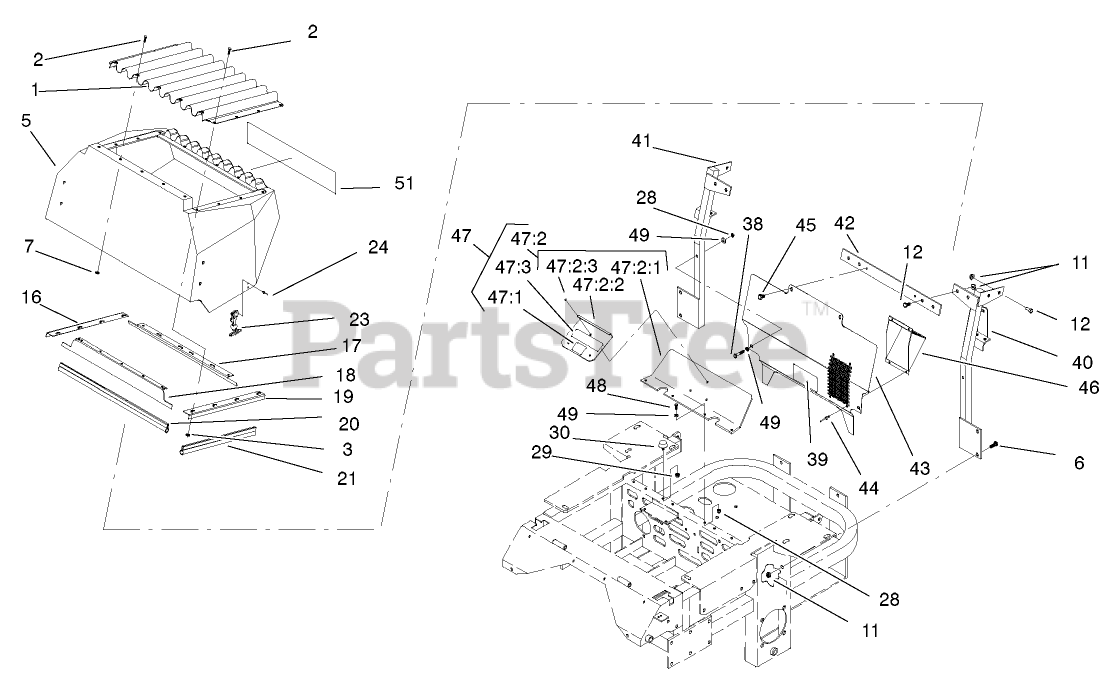

REAR HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 1-633864-03

SCREEN-RADIATOR

$274.99

$

Usually ships in 3-6 days

0

2

$2.99

$

Usually ships in 3-6 days

0

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

$

$

Not available

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 1-643106-03

ANGLE-RADIATOR, RH

$29.99

$

Usually ships in 3-6 days

0

17

Toro 1-643108-03

ANGLE-RADIATOR, BOTTOM

$39.99

$

Usually ships in 3-6 days

0

18

Toro 1-643107-03

ANGLE-RADIATOR, TOP

$47.99

$

Usually ships in 3-6 days

0

19

Toro 1-643105-03

ANGLE-RADIATOR, LH

$29.99

$

Usually ships in 3-6 days

0

20

Toro 1-643187

SEAL-TRIM

$22.99

$

Usually ships in 3-6 days

0

21

Toro 1-643186

SEAL-TRIM

$26.99

$

Usually ships in 3-6 days

0

23

Toro 1-643188

LATCH-RUBBER

$22.99

$

In Stock, Qty 6

0

24

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

38

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

39

Toro 1-643339

DECAL-ROUTING, BELT

$

$

Not available

40

Toro 1-632984-03

BRACE-RADIATOR, LH

$179.99

$

Usually ships in 3-6 days

0

41

Toro 1-632985-03

BRACE-RADIATOR, RH

$

$

Not available

42

Toro 1-633878-03

CROSSBAR

$

$

Not available

43

Toro 1-643087-03

DEFLECTOR-AIR

$

$

Not available

44

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

45

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

46

Toro 1-643096-03

PLENUM-INTAKE, AIR

$

$

Not available

47

Toro 1-644276

SHIELD ASM

$117.99

$

In Stock, only 2 left!

0

47:1

Toro 1-633462

DECAL-IMPORTANT

$5.49

$

In Stock, only 4 left!

0

47:2

Toro 1-634308

SHIELD AND LIFT ASM

$98.99

$

Usually ships in 3-6 days

0

47:2:1

Toro 1-633298

SHIELD-ENGINE

$

$

Not available

47:2:2

Toro 1-633300-03

LIFT-SHIELD

$16.99

$

Usually ships in 3-6 days

0

47:2:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

47:3

Toro 103-0368

DECAL-DEVICES, ROTATING
(Superseded to 103-5881)

$6.49

$

In Stock, Qty 10

0

48

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

49

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 99-4621

DECAL-Z MASTER LIQUID COOLED

$

$

Not available
