74216 (Z 283 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) LUBRICATION-EQUIPMENT-KAWASAKI FD661D AS-03 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

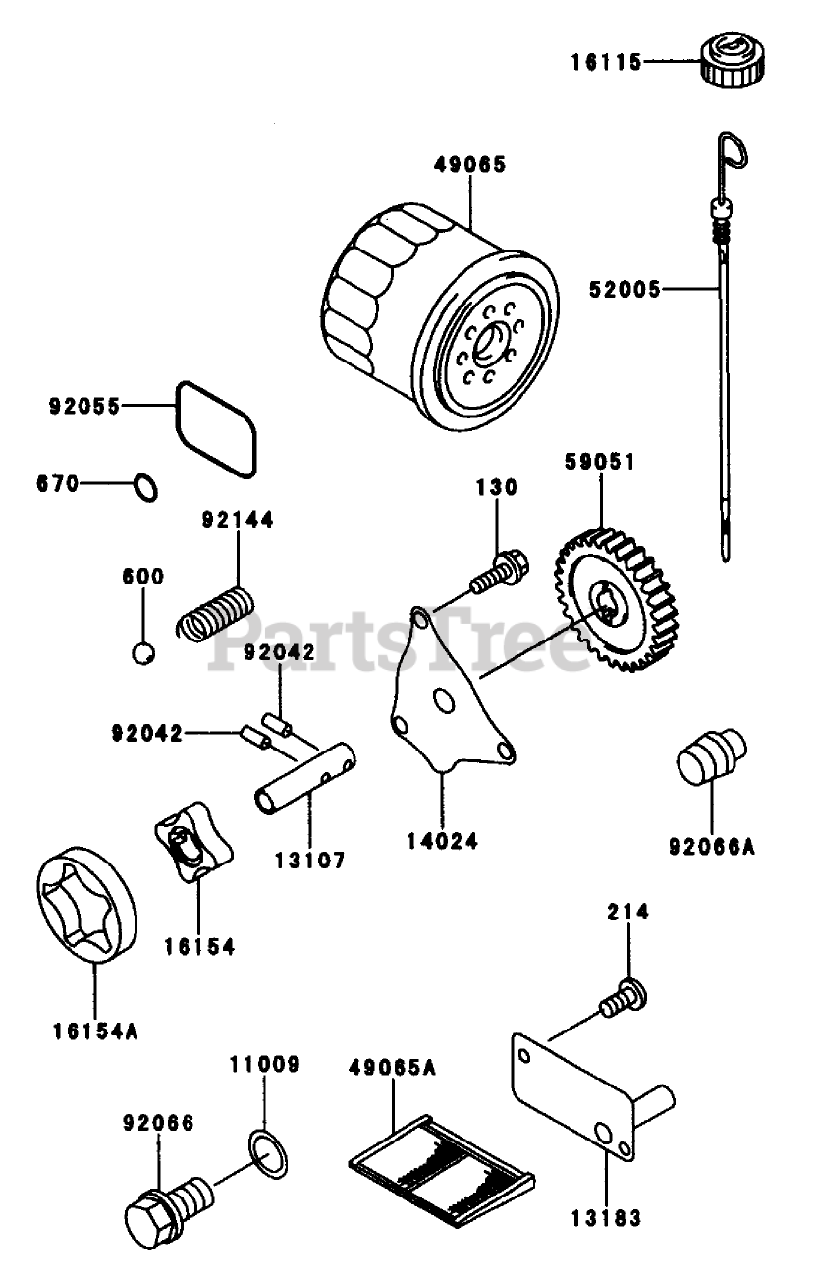

LUBRICATION-EQUIPMENT-KAWASAKI FD661D AS-03 Parts Diagram

  • Title

11009

Kawasaki 11009-2566

Gasket-Plug, Drain

$0.99

$

In Stock, Qty 8

0

13107

Kawasaki 13107-2099

Shaft-Oil Pump
(Superseded to 13107-2296)

$12.99

$

In Stock, only 1 left!

0

13183

Kawasaki 13183-2419

Plate

$19.99

$

Usually ships in 2-5 days

0

14024

Kawasaki 14024-2113

Cover,Oil Pump

$4.99

$

In Stock, only 1 left!

0

16115

Kawasaki 16115-2090

Cap-Oil Filler

$10.99

$

In Stock, only 1 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP (IN)

$12.99

$

In Stock, only 2 left!

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP (OUT)

$9.49

$

In Stock, only 2 left!

0

49065

Kawasaki 49065-2071

Filter-Oil

$15.99

$

In Stock, Qty 20+

0

49065A

Kawasaki 49065-2072

Filter-Oil

$7.99

$

In Stock, Qty 5

0

52005

Kawasaki 52005-2122

Guage
(Superseded to 52005-2110)

$24.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2114

Gear-Spur
(Superseded to 59051-2371)

$7.49

$

In Stock, only 1 left!

0

92042

Kawasaki 92042-014

Pin

$0.99

$

In Stock, Qty 11

0

92055

Kawasaki 92055-2086

O-Ring

$1.49

$

In Stock, Qty 12

0

92066

Kawasaki 92066-2099

Plug-Drain

$15.99

$

In Stock, only 2 left!

0

92066A

Kawasaki 92066-2235

Plug

$3.49

$

Usually ships in 2-5 days

0

92144

Kawasaki 92144-2053

Spring
(Superseded to 92145-2132)

$0.99

$

In Stock, only 1 left!

0

130

Kawasaki 130B0614

Bolt 6 x 14
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0

214

Toro 214B0512

Screw-Pan

$

$

Currently unavailable

600

Kawasaki 600A1300

Ball-Steel (13/32)

$0.99

$

In Stock, Qty 14

0

670

Kawasaki 670B2011

O-Ring (11MM)

$1.49

$

In Stock, Qty 20+

0
