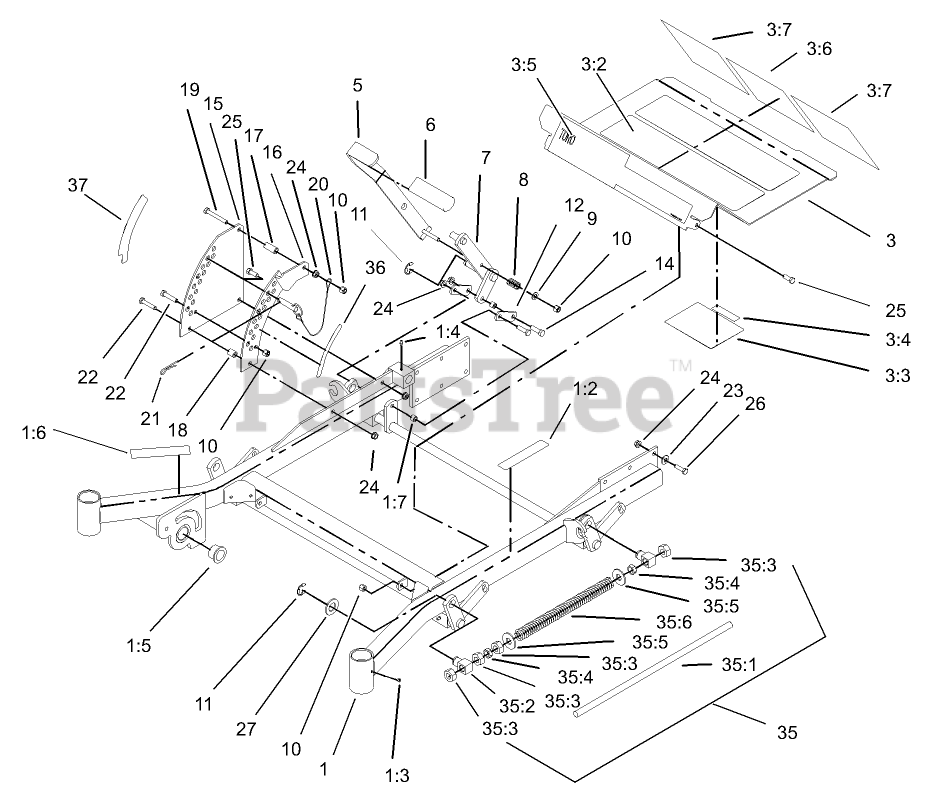

74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) FRONT FRAME ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 104-5133

FRAME ASM

$3543.99

$

Usually ships in 3-6 days

0

1:2

Toro 1-633818

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

1:3

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

1:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

1:5

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

1:6

Toro 104-7759

DECAL-WARNING

$6.99

$

Usually ships in 3-6 days

0

1:7

Toro 103-1918

Bushing

$7.99

$

In Stock, Qty 6

0

3

Toro 106-6587

Floorpan ASM

$

$

Not available

3:2

Toro 1-633553

PAD-ANTISKID

$13.99

$

In Stock, only 4 left!

0

3:3

Toro 1-633766

DECAL-CHECK

$

$

Not available

3:4

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

3:5

Toro 1-633737

DECAL

$51.99

$

Usually ships in 3-6 days

0

3:6

Toro 106-6571

Decal-Danger, Slope

$19.99

$

Usually ships in 3-6 days

0

3:7

Toro 106-6572

Pad, Anti Skid

$11.99

$

In Stock, Qty 7

0

5

Toro 103-2083-03

LEVER-LIFT
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

6

Toro 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

7

Toro 103-2064-03

ARM-LIFT, DECK

$76.99

$

Usually ships in 3-6 days

0

8

Toro 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

11

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

12

Toro 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

14

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

15

Toro 1-633889-01

PLATE-LIFT, DECK

$

$

Not available

16

Toro 1-632899-01

PLATE-LIFT, DECK

$

$

Not available

17

Toro 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

18

Toro 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

19

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

20

Toro 1-633097

PIN-HITCH (W/LANYARD)

$23.99

$

In Stock, only 2 left!

0

21

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

35

Front Frame Spring ASM

Note: Not serviced separately

$

$

Not available

35:1

Toro 1-633096

ROD-LIFT, DECK

$23.99

$

In Stock, only 3 left!

0

35:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

0

35:3

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

35:4

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

35:5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35:6

Toro 1-633064

SPRING-SUPPORT, DECK

$33.99

$

In Stock, only 1 left!

0

36

Toro 1-633706

DECAL-HEIGHT, DECK

$3.99

$

In Stock, Qty 5

0

37

Toro 1-633345

DECAL-HEIGHT, DECK

$20.99

$

Usually ships in 3-6 days

0
