74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) SEAT ASSEMBLY NO. 99-8522 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

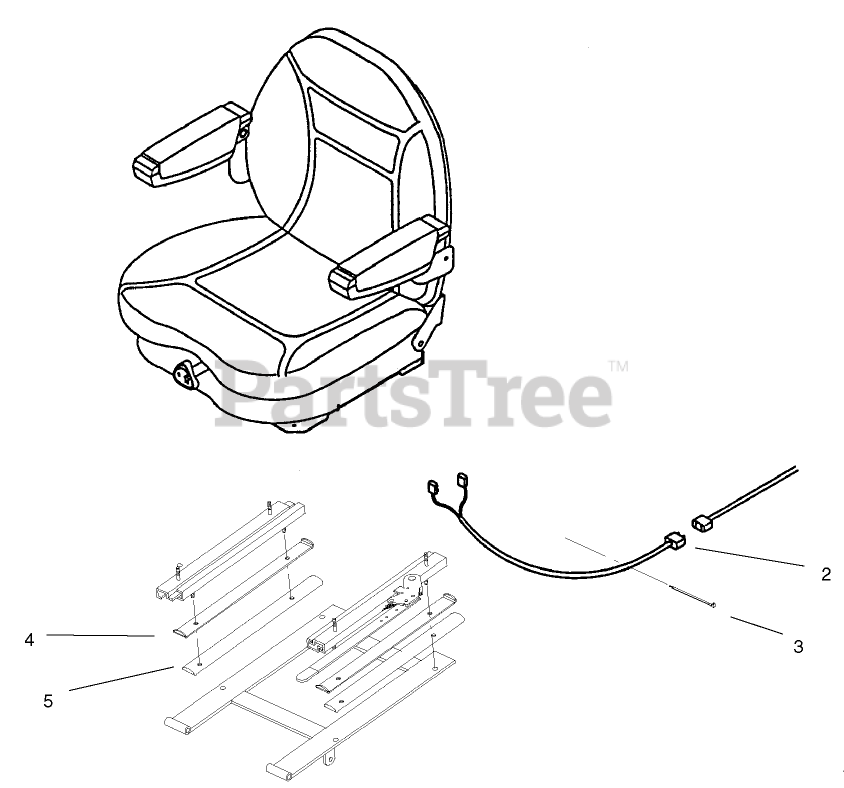

SEAT ASSEMBLY NO. 99-8522 Parts Diagram

  • Title

2

Toro 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

3

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

4

Toro 1-633872-03

STOP-SEAT

$47.99

$

Usually ships in 3-6 days

0

5

Toro 1-653282-03

STOP/SPACER-SEAT

$49.99

$

Usually ships in 3-6 days

0

30

Toro 1-643281

SWITCH-SEAT

Note: Not illustrated

$56.99

$

Usually ships in 3-6 days

0

31

Toro 1-631842

KIT-PAD, ARMREST

Note: Not illustrated

$220.99

$

Usually ships in 3-6 days

0

32

Toro 1-631843

KIT-BOOT

Note: Not illustrated

$

$

Not available

33

Toro 1-631844

ARM KIT ASM

Note: Not illustrated

$525.99

$

Usually ships in 3-6 days

0

34

Toro 1-631845

PAN ASM

Note: Not illustrated

$

$

Not available

35

Toro 1-631846

KIT-DAMPER

Note: Not illustrated

$

$

Not available

36

Toro 1-631847

KIT-ROLLER

Note: Not illustrated

$

$

Not available

37

Toro 1-631848

KIT-SPRING & CABLE

Note: Not illustrated

$161.99

$

In Stock, only 1 left!

0

38

Toro 1-631849

KIT-KNOB & SHAFT

Note: Not illustrated

$

$

Not available
