74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) STEERING CONTROL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

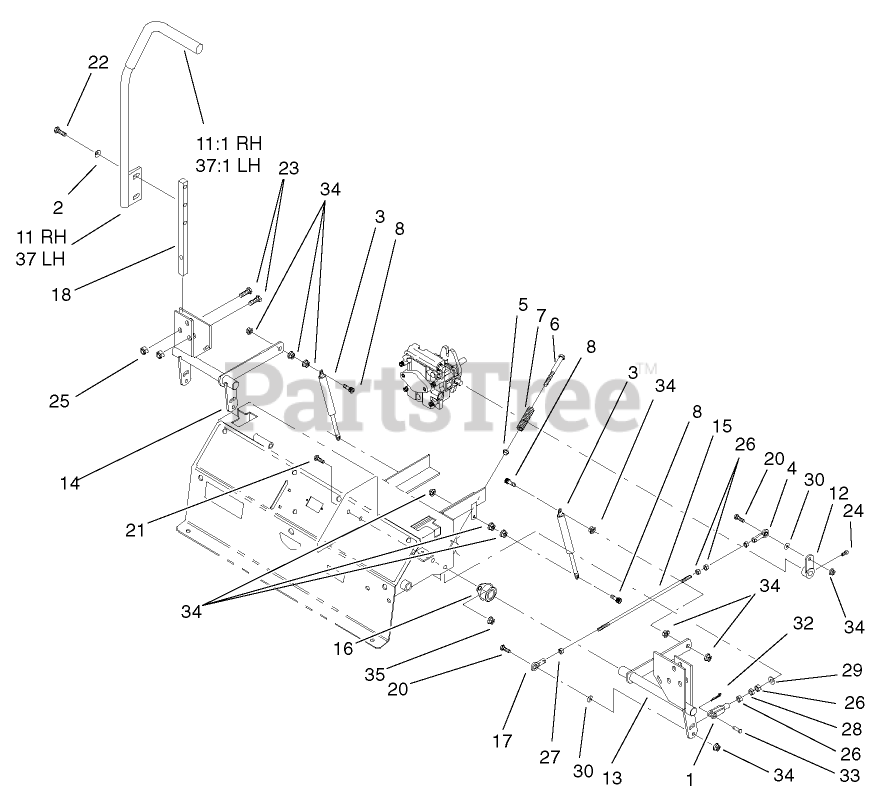

STEERING CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 1-523027

DAMPER-CONTROL
(Superseded to 109-2339)

$76.99

$

In Stock, Qty 20+

0

4

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, Qty 13

0

5

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

6

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 4 left!

0

7

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

8

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 103-0632

RH LEVER ASM

$105.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

12

Toro 1-632208

ARM-CONTROL, PUMP

$28.99

$

In Stock, Qty 20+

0

13

Toro 1-642319

CONTROL-MOTION, LH

$223.99

$

Usually ships in 3-6 days

0

14

Toro 1-642320

CONTROL-MOTION, RH

$177.99

$

Usually ships in 3-6 days

0

15

Toro 1-633153

LINKAGE-PUMP/LEVER

$

$

Not available

16

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 3 left!

0

17

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, Qty 12

0

18

Toro 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

20

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

27

$2.99

$

In Stock, only 2 left!

0

28

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

34

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

37

Toro 103-0631

LH LEVER ASM

$105.99

$

Usually ships in 3-6 days

0

37:1

Toro 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0
