74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) STARTER (KAWASAKI FD750D-AS03) Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

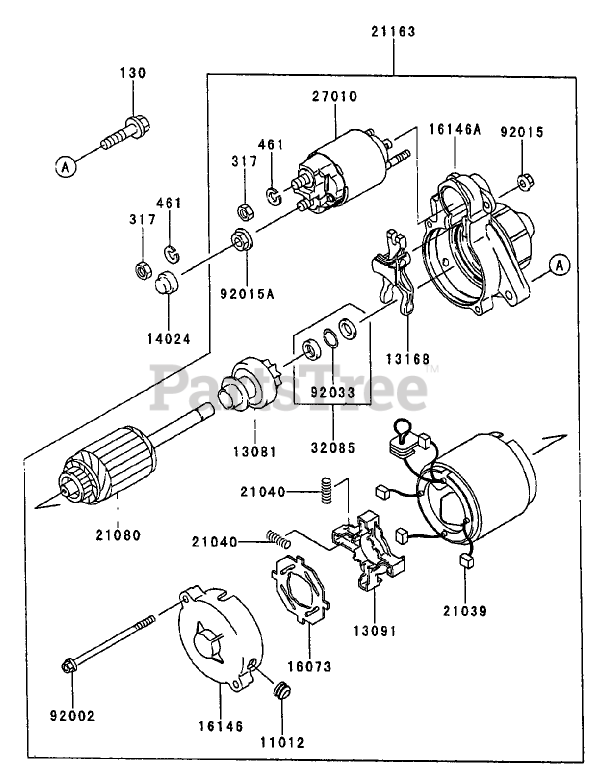

STARTER (KAWASAKI FD750D-AS03) Parts Diagram

  • Title
11012

Kawasaki 11012-2226

Cap

Note: Obtain Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

13081

Kawasaki 13081-2108

Clutch ASM

Note: Obtain Parts from Kawasaki.

$122.99

$

Usually ships in 2-5 days

0

13091

Kawasaki 13091-2068

Brush Holder
(Superseded to 13280-0873)

Note: Obtain Parts from Kawasaki.

$29.99

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-2131

Lever-Shift

Note: Obtain Parts from Kawasaki.

$24.99

$

In Stock, only 1 left!

0

14024

Kawasaki 14024-2205

Cover

Note: Obtain Parts from Kawasaki.

$1.49

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2098

Insulator

Note: Obtain Parts from Kawasaki.

$10.99

$

Usually ships in 2-5 days

0

16146

Toro 16146-2187

Cover ASM

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

16146A

Kawasaki 16146-2225

Cover ASM

Note: Obtain Parts from Kawasaki.

$

$

Not available

21039

Kawasaki 21039-2059

Brush
(Superseded to 21039-0011)

Note: Obtain Parts from Kawasaki.

$15.99

$

In Stock, only 1 left!

0

21040

Kawasaki 21040-2052

Spring-Brush

Note: Obtain Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-2054

Armature

Note: Obtain Parts from Kawasaki.

$

$

Not available

21163

Kawasaki 21163-2120

Starter-Electric
(Superseded to 21163-2130)

Note: Obtain Parts from Kawasaki.

$295.99

$

Usually ships in 2-5 days

0

32085

Kawasaki 32085-2097

Stopper

Note: Obtain Parts from Kawasaki.

$15.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2277

Bolt
(Superseded to 92154-2116)

Note: Obtain Parts from Kawasaki.

$13.99

$

In Stock, Qty 5

0

92015

Kawasaki 92015-2146

Nut

Note: Obtain Parts from Kawasaki.

$1.99

$

Usually ships in 2-5 days

0

92015A

Kawasaki 92015-2147

Nut

Note: Obtain Parts from Kawasaki.

$7.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0835

Bolt-Flanged (8X35)
(Superseded to 130BA0835)

Note: Obtain Parts from Kawasaki.

$1.99

$

In Stock, only 3 left!

0

317

Toro 317B0800

Nut-Hex, Small (8mm)

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

461

Toro 461F0800

Washer-Spring (8mm)

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

992033

Kawasaki 92033-2081

Ring-Snap

Note: Obtain Parts from Kawasaki.

$6.99

$

Usually ships in 2-5 days

0
