74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) ELECTRIC EQUIPMENT (KAWASAKI FD750D-AS03) Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

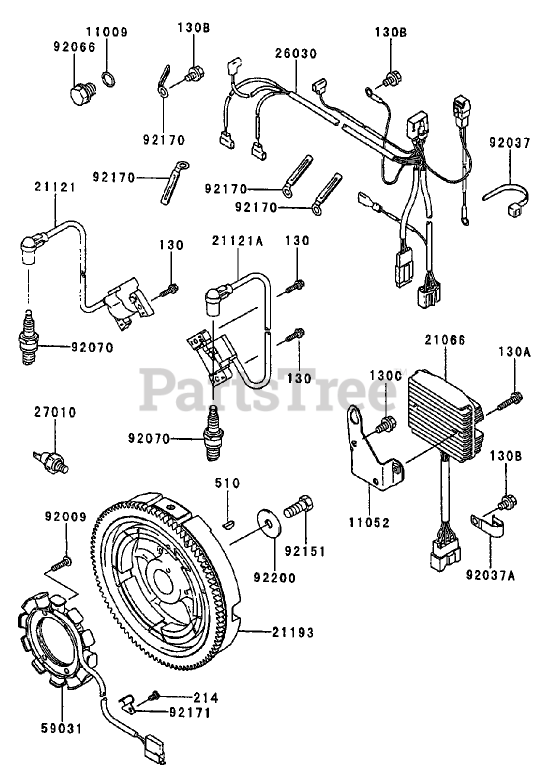

ELECTRIC EQUIPMENT (KAWASAKI FD750D-AS03) Parts Diagram

  • Title

11009

Kawasaki 11009-2766

Gasket (16X24X1)
(Superseded to 11061-2132)

Note: Obtain Parts from Kawasaki.

$1.49

$

In Stock, Qty 8

0

11052

Kawasaki 11052-2058

Bracket

Note: Obtain Parts from Kawasaki.

$36.99

$

In Stock, only 1 left!

0

21066

Kawasaki 21066-2079

Regulator-Voltage

Note: Obtain Parts from Kawasaki.

$280.99

$

Usually ships in 2-5 days

0

21121

Kawasaki 21121-2090

Coil-Ignition, No. 1

Note: Obtain Parts from Kawasaki.

$66.99

$

Usually ships in 2-5 days

0

21121A

Kawasaki 21121-2091

Coil-Ignition, No. 2

Note: Obtain Parts from Kawasaki.

$66.99

$

Usually ships in 2-5 days

0

21193

Toro 21193-2177

Flywheel ASM

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

26030

Kawasaki 26030-2320

Harness
(Superseded to 26031-1576)

Note: Obtain Parts from Kawasaki.

$85.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-7001

Switch
(Superseded to 27010-0817)

Note: Obtain Parts from Kawasaki.

$23.99

$

In Stock, Qty 9

0

59031

Kawasaki 59031-2127

Coil-Charging

Note: Obtain Parts from Kawasaki.

$207.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2273

Screw (6X25)

Note: Obtain Parts from Kawasaki.

$1.49

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-1173

Clamp

Note: Obtain Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2101

Clamp

Note: Obtain Parts from Kawasaki.

$

$

Not available

92066

Kawasaki 92066-2099

Plug-Drain

Note: Obtain Parts from Kawasaki.

$15.99

$

In Stock, only 2 left!

0

92070

Kawasaki 92070-2110

Plug-Spark, BPR2ES
(Superseded to BPR2ES)

Note: Obtain Parts from Kawasaki.

$3.49

$

In Stock, only 4 left!

0

92151

Toro 92151-0297

Bolt

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

92170

Kawasaki 92170-2060

Clamp

Note: Obtain Parts from Kawasaki.

$3.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-2060

Clamp

Note: Obtain Parts from Kawasaki.

$1.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2119

Washer (12.2X40X3.0)

Note: Obtain Parts from Kawasaki.

$6.49

$

Usually ships in 2-5 days

0

130

Toro 130G0520

Bolt-Flanged (5X20)

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

130A

Toro 130G0630

Bolt-Flanged (6X30)

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

130B

Toro 130G0812

Bolt-Flanged (8X12)

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

130C

Toro 130G0816

Bolt-Flanged (8X16)

Note: Obtain Parts from Kawasaki.

$

$

Currently unavailable

214

Kawasaki 214B0510

SCREW-PAN (5X10)
(Superseded to 214AA0510)

Note: Obtain Parts from Kawasaki.

$0.99

$

In Stock, Qty 13

0

510

Kawasaki 510A5100

Key-Woodruff

Note: Obtain Parts from Kawasaki.

$3.49

$

In Stock, Qty 20+

0
