74213 (Z 287 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) FUEL SYSTEM ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

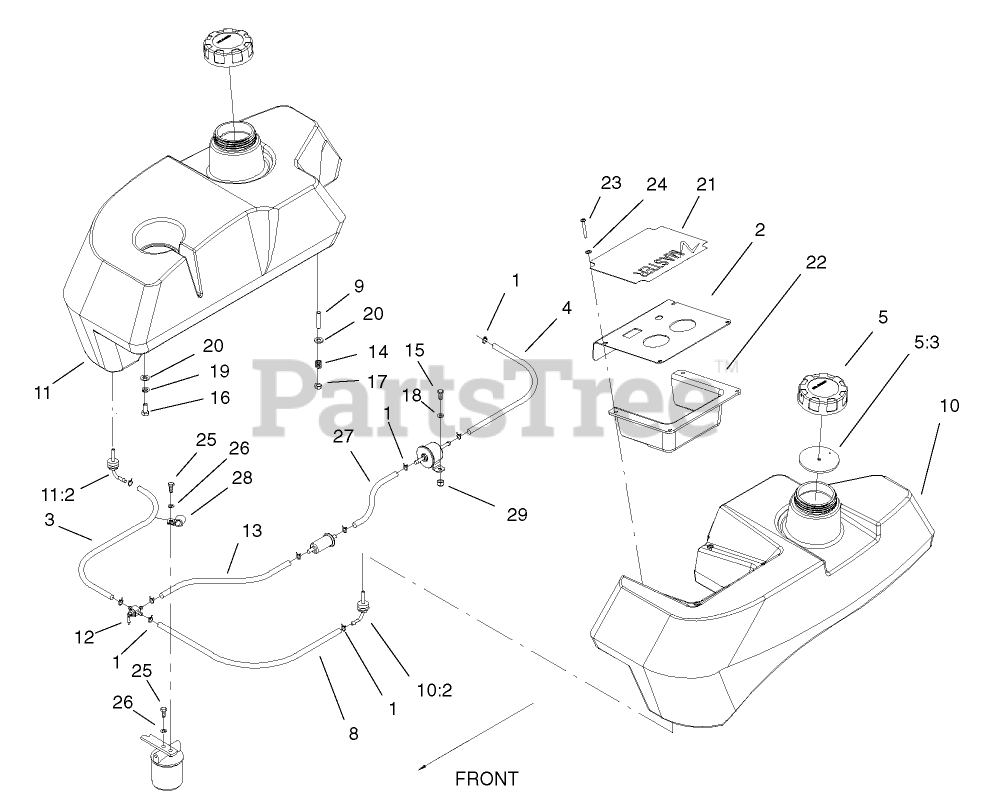

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

$1.49

$

In Stock, Qty 8

0

2

Toro 99-4617-03

PANEL-CONTROL

$

$

Not available

3

Toro 103-2885

Hose-Fuel

$13.99

$

Usually ships in 3-6 days

0

4

Toro 103-1335

Hose-Fuel

$

$

Not available

5

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

5:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

8

Toro 1-543456

HOSE-FUEL

$

$

Not available

9

$6.49

$

Usually ships in 3-6 days

0

10

Toro 105-3629

ASM, Tank-Fuel LH
(Superseded to 105-3644)

$901.99

$

Usually ships in 3-6 days

0

10:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

11

Toro 105-3628

ASM, Tank-Fuel RH
(Superseded to 105-3643)

$901.99

$

Usually ships in 3-6 days

0

11:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

12

Toro 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

0

13

Toro 1-303426

HOSE-FUEL LINE

$

$

Not available

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 99-4612

DECAL-CONTROL PANEL

$

$

Not available

22

Toro 99-4940

SHIELD-PANEL, CONTROL

$

$

Not available

23

$1.49

$

In Stock, Qty 13

0

24

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

27

Toro 1-643270

HOSE-FUEL

$8.49

$

In Stock, only 1 left!

0

28

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0
